Bosch Gas Cooktop Model NGM8657UC
| Enameled Heavy-Duty Grates | |
| Can be easily and quickly cleaned in the dishwasher instead of cleaned by hand. | |

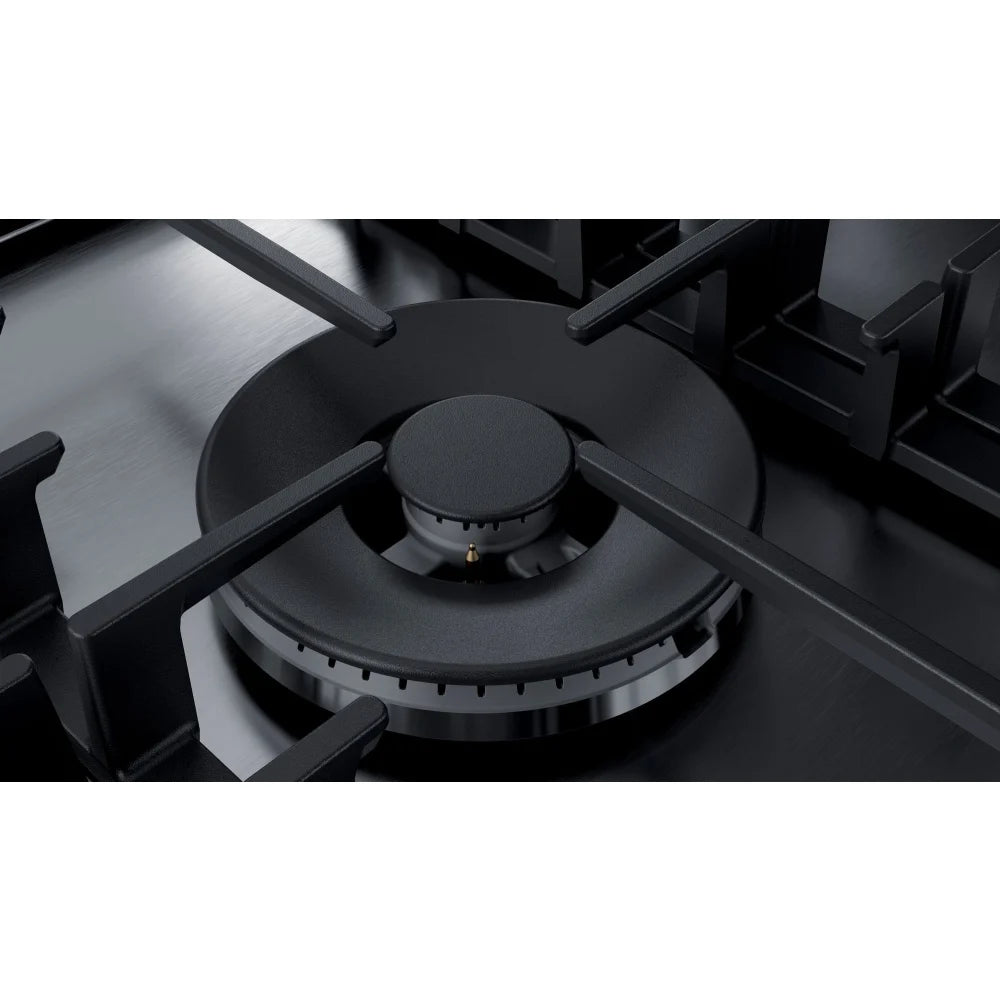

| Dual Flame Power Burner | |
| Quickly boil water or maintain a precise simmer with two heat options | |
| FlameSelect | |
| Allows for a precise adjustment of the flame size with nine defined power levels. | |
| OptiSim® Burner | |
| Simmer delicate sauces and melt chocolate without scorching. | |
| Flame Failure Safety | |
| Each burner features a flame failure device for your added peace of mind. | |

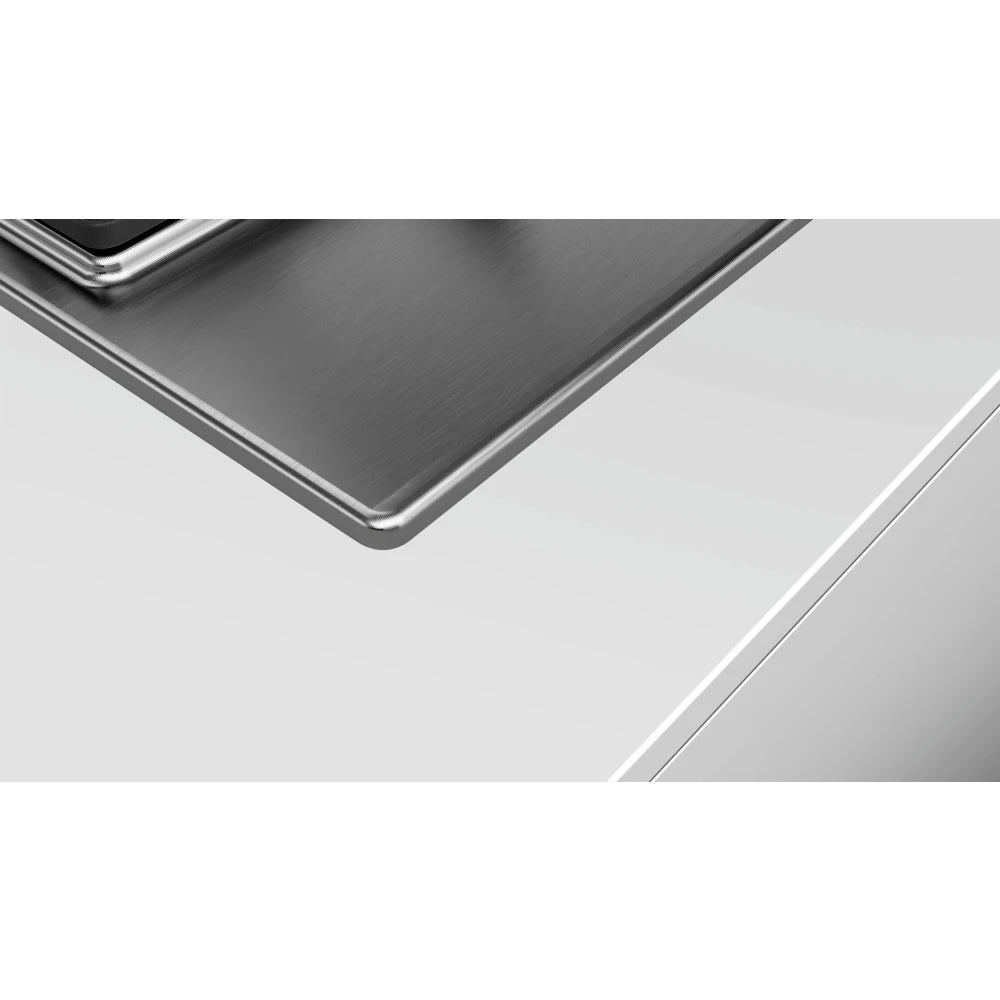

| Low Profile Cooking Surface | |
| Stainless steel cooking surface is easily accessible and quick to clean. | |
| LP Conversion Kit | |
| Included for Conversion from Natural Gas to Liquid Propane | |
| Other Features | |

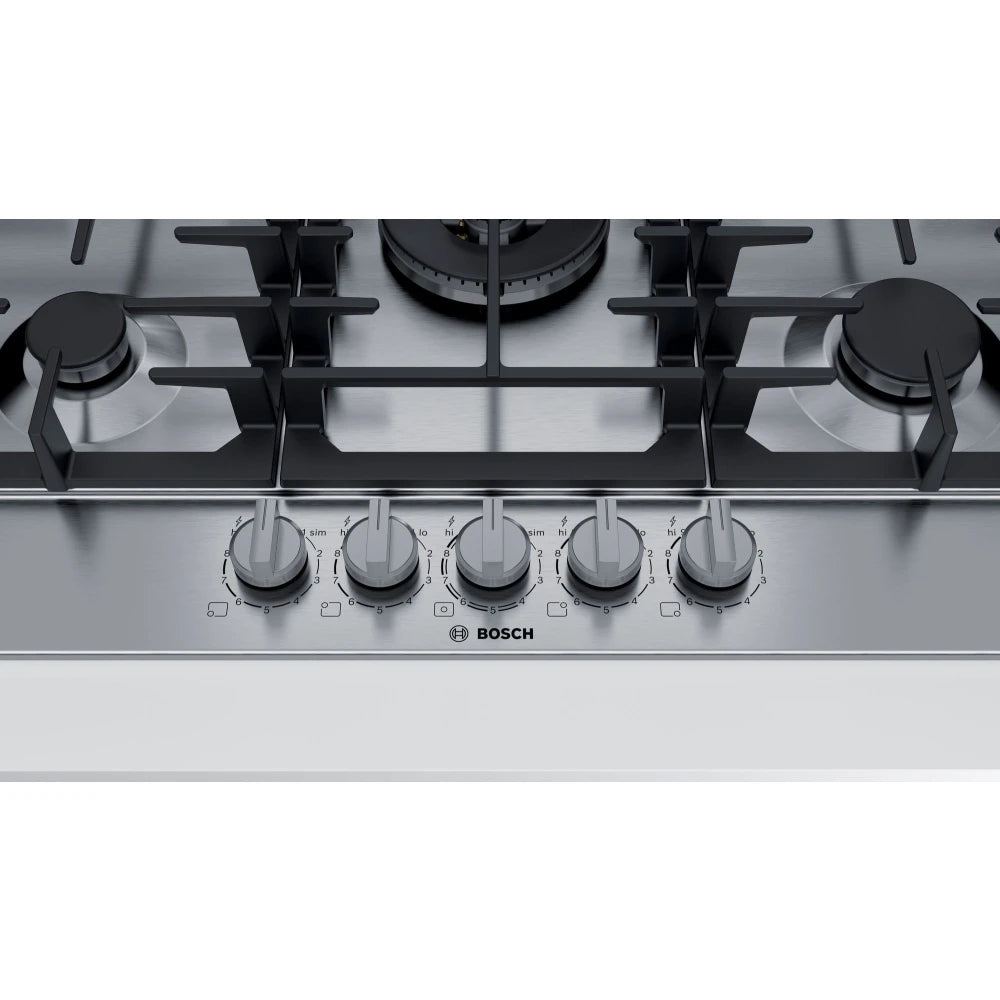

| Push-to-Turn Knobs with Electronic Ignition | |
| Construction Type: | Built-in |
| Installation Type: | Built-in |
| Color of Frame: | Stainless Steel |
| Cooktop Surface: | Stainless Steel |
| Knob Color: | Stainless Steel |
| Number of Cooktop Burners: | 5 |
| Sealed Burners: | Yes |
| Gas Valves: | Five 9-Level Step Valves |
| Ignition System: | Electric; Thermocouple Safety Control |
| Type of Grate: | Cast Iron |
| Continuous Grates: | Yes |
| Dishwasher Safe Grates: | Yes |
| Type of Safety Device for Gas: | Electromagnetic For Each Burner |
| Total BTU Load (NG / LP): | 41,400 / 40,100 |
| Power of Front Left Burner OptiSim® (NG / LP): | 3,400 / 3,400 BTU |
| Power of Back Left Burner (NG / LP): | 6,000 / 6,000 BTU |
| Power of Center Burner (NG / LP) Dual-flame: | 17,000 / 15,700 BTU |
| Power of Back Right Burner (NG / LP): | 9,000 / 9,000 BTU |
| Power of Front Right Burner (NG / LP): | 6,000 / 6,000 BTU |
| Accessories Included: | LP Conversion Kit, OptiSim® Cap |
| Accessories Optional: | Wok Ring (HEZ298107) |
| Overall Dimensions (HxWxD): | 2 23/64" x 36" x 20 1/2" |
| Required Cutout Size(HxWxD): | 1 1/4" x 33 1/2" x 19 5/16" |
| Minimum Distance From Counter Front: | 1 7/8" |
| Minimum Distance From Rear Wall: | 3" |
| Net Weight: | 42 Lbs |
| Circuit Breaker: | 15 A |
| Volts: | 120 V |
| Frequency: | 60 Hz |
| Gas connection rating: | 12,500 W |
| Location of gas connection: | Rear, Right |
| Plug Type: | 3-prong |
| Power Cord Length: | 40" |
| Fuel Type: | Natural Gas (Factory Set) |
| Convertible to LP(kit required): | Yes |
| ADA Compliant: | Yes |
| CSA: | Yes |
| Parts and Labor: | 1 Year |
| Brand: | Bosch |
| Series: | 800 Series |
| Model: | NGM8657UC |
| Fuel Type: | Gas |
| Fuel Subtype: | Natural Gas |
| Number of Burners: | 5 |
| Style: | Sealed Burner |
| Type: | Drop-In |
| Control Type: | Knobs |
| Color: | Stainless Steel |
| Surface Color: | Stainless Steel |
| Trim Color: | Stainless Steel |
| Fingerprint Resistant: | No |
| Downdraft Venting: | No |
| Actual Width: | 36 Inch |
| Actual Depth: | 20 1/2 Inch |
| Actual Height: | 2 23/64 Inch |
| Cutout Width: | 33 1/2 Inch |
| Cutout Depth: | 19 5/16 Inch |
| Sabbath Mode: | No |
| WiFi: | No |
| Simmer Burner: | Yes |
| Power Burner: | Yes |
| Burner 1 Output: | 3,400 BTU |
| Burner 2 Output: | 6,000 BTU |
| Burner 3 Output: | 17,000 BTU |
| Burner 4 Output: | 9,000 BTU |
| Burner 5 Output: | 6,000 BTU |
| Continuous Grates: | Yes |
| Dishwasher Safe Grates: | Yes |
| Cooktop Accessory: | No Accessory |
| Grill: | No |
| Griddle: | No |
| French Top: | No |
| Hot Surface Indicator Light: | No |
| Induction: | No |
| ADA Compliant: | Yes |
| LP Conversion: | Yes |
| Amps: | 15 |
| Voltage: | 120 Volts |
| UPC: | 825225958444 |
| EAN: | 0825225958444 |
