M&M Appliance

Friedrich 10,000 BTU Heat & Cool A/C Unit Model UE10D33D Inv# 29420

Friedrich 10,000 BTU Heat & Cool A/C Unit Model UE10D33D Inv# 29420

Regular price $603.30 USD
Regular price $709.77 USD Sale price $603.30 USD
Sale Sold out
Shipping calculated at checkout.
View full details

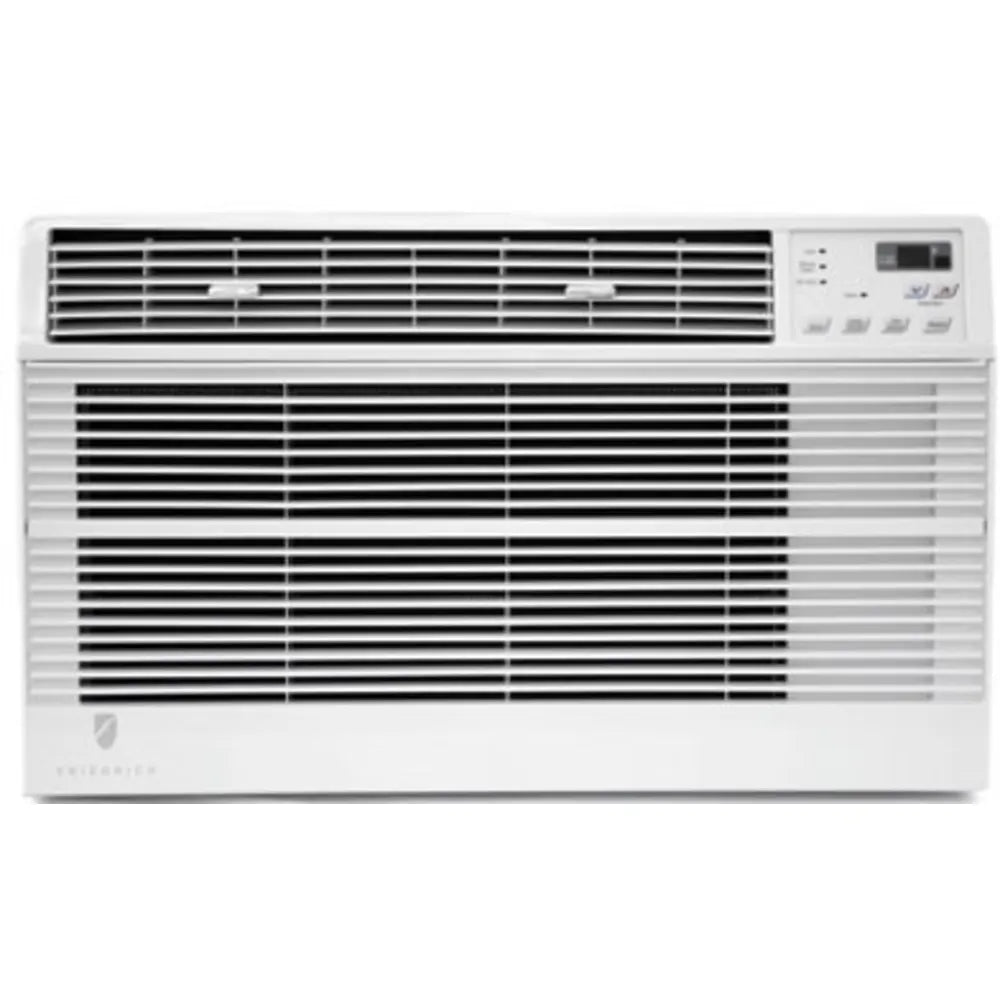

Friedrich 10,000 BTU Heat & Cool A/C Unit Model UE10D33D

Comfort and Convenience
Six-way air flow control.
Energy Savings
Money Saver setting saves money by conserving energy.
Durability and Quality
Rotary compressors provide quiet, dependable performance.
Installation Features
Universal-fit trim ring closes gaps between unit and sleeve.
Cooling Capacity:   10,000 / 9,800 BTU
Heating Capacity:   11,200 / 9,200 BTU
Volts Rated:   230/208 Volts
Cooling Amps:   4.7 / 5.1 Amps
Cooling Watts:   1,020 / 1,000 Watts
Heating Amps:   15.3 / 14.0 Amps
Heating Watts:   3,500 / 2,900 Watts
Energy Efficiency Ratio (ERR):   9.8 / 9.8
CEER:   9.7 / 9.7
Moisture Removal:   3.2 Pints/Hr.
Room Side Air Circulation:   285 CFM
Sleeve Type:   USC
Circuit Rating Breaker or T-D Fuse:   250V - 20A
Plug Face (NEMA#):   6-20P
Power Cord Length:   6 Ft.
Chassis Width:   24 5/8"
Chassis Depth:   18"
Chassis Depth with Front:   19 5/8"
Chassis Height:   14 3/8"
Chassis Min. Extension Into Room:   3 1/2"
USC Sleeve Width:   25 7/8"
USC Sleeve Depth:   16 3/4"
USC Sleeve Depth with Front:   20 1/2"
USC Sleeve Height:   15 1/2"
USC Sleeve Min. Extension Outside:   1/2"
Thru-the-Wall Finished Hole Width:   26 1/8"
Thru-the-Wall Finished Hole Depth:   16 1/4" Max.
Thru-the-Wall Finished Hole Height:   15 3/4"
Net Weight:   78.0 Lbs.
Shipping Weight:   84.0 Lbs.
Brand: Friedrich
Series: Uni-Fit Series
Model: UE10D33D
Width: 24 5/8 Inch
Depth: 18 1/2 Inch
Height: 14 3/8 Inch
Cooling Capacity (BTU): 10,000 BTU
Heating Capacity (BTU): 11,200 BTU
CFM Room Circulation: 285 CFM
Type: Wall
Chassis Type: Thru the Wall
Wall Sleeve Included: No
Maximum Cooling Amps: 4.7 Amps
Maximum Cooling Watts: 1,020 Watts
Maximum Heating Amps: 15.3 Amps
Maximum Heating Watts: 3,500 Watts
Heat: Electric Heat
Energy Efficiency Rating: 9.8

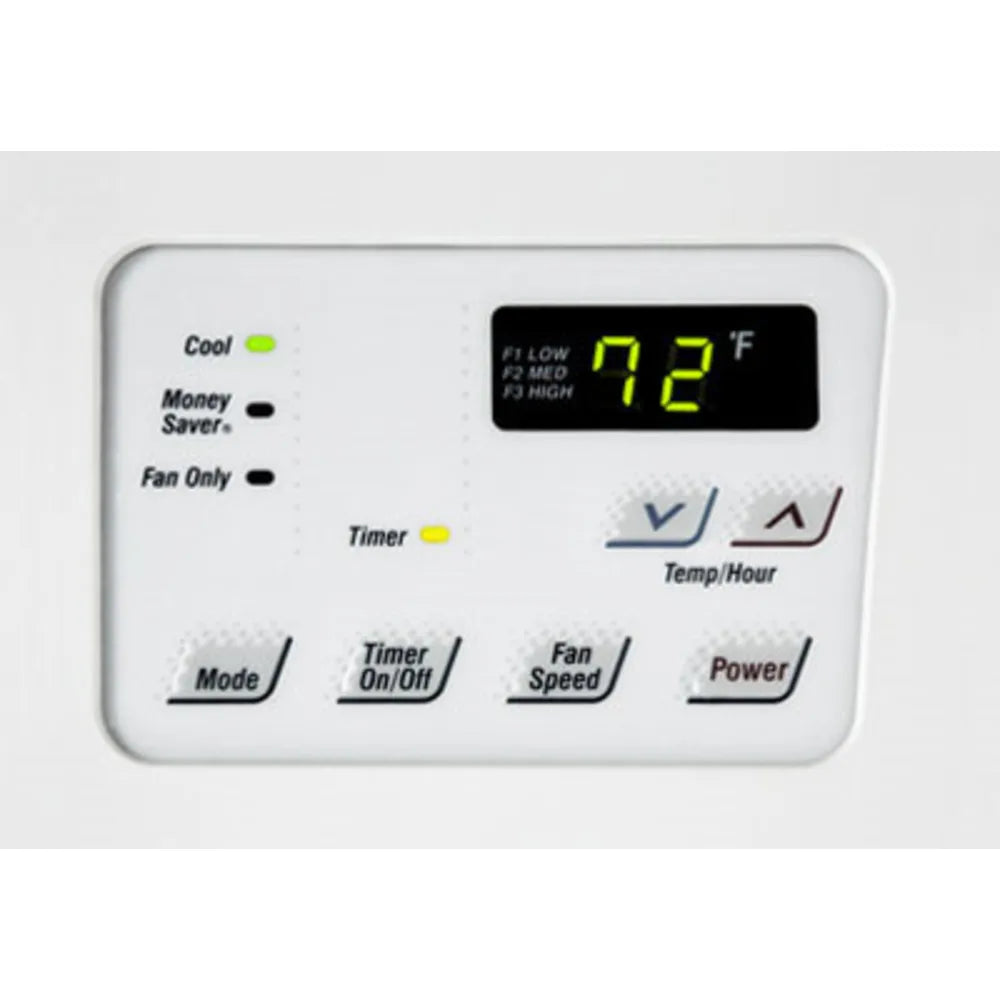

Control Type: Digital

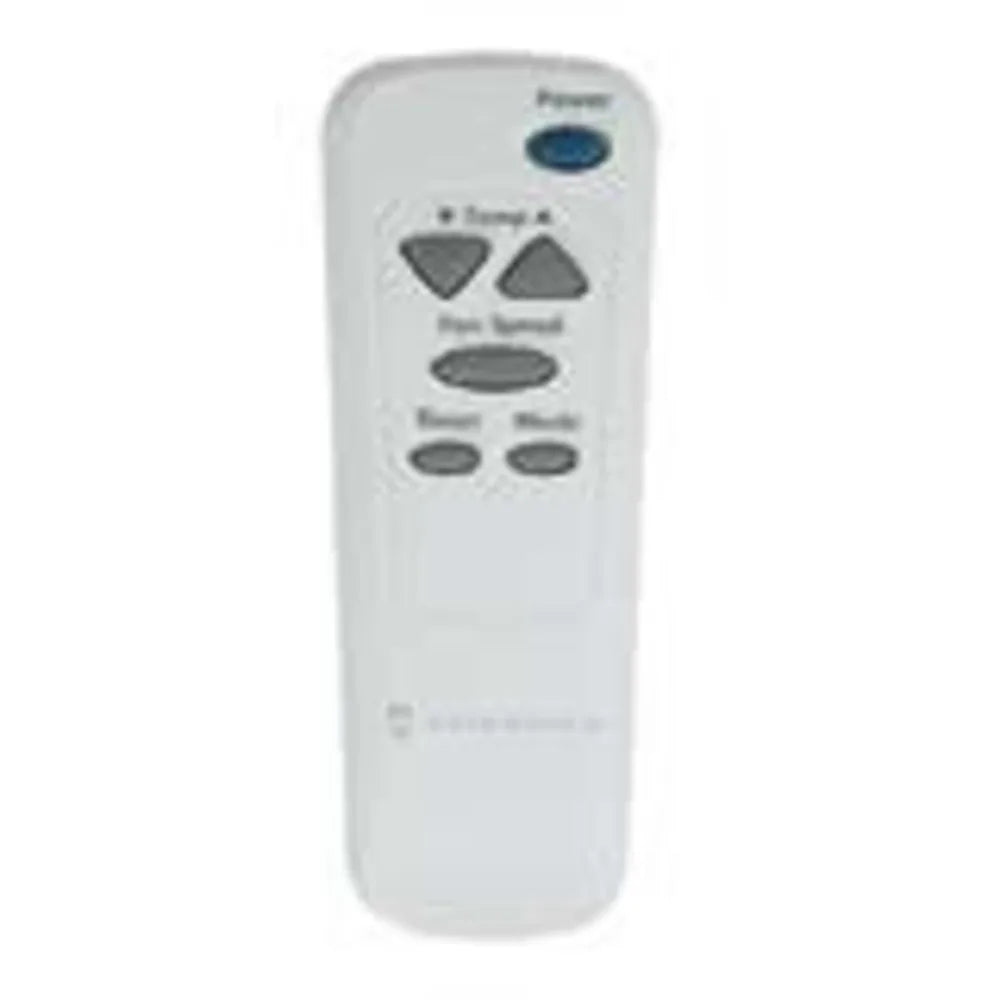

Remote Control Included: Yes
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-20P
Voltage: 230/208 Volts
UPC: 724587434019
EAN: 0724587434019


Location: DC-WH
Warehouse Location: R02M
