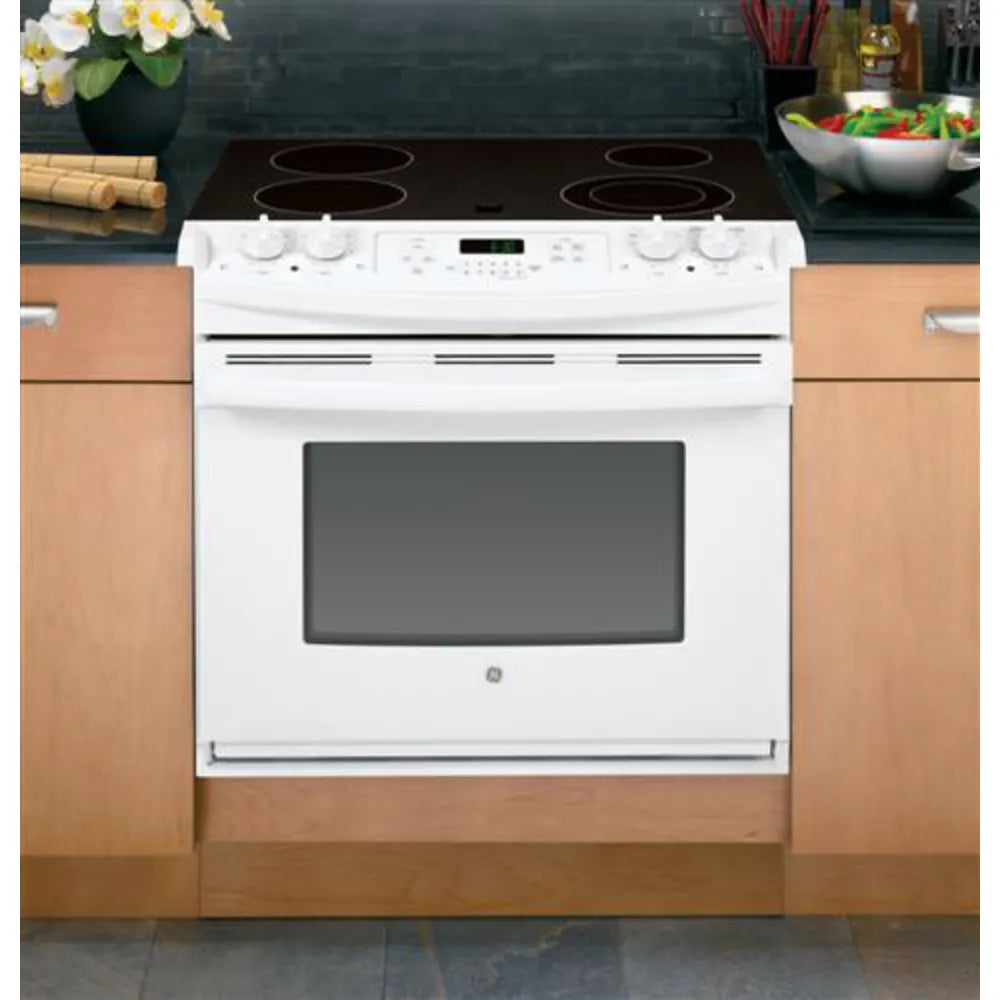

GE Drop-In Electric Range Model JD630DFWW Inv# 17794

GE Drop-In Electric Range Model JD630DFWW Inv# 17794

Regular price $1,473.70 USD
Regular price $1,733.77 USD Sale price $1,473.70 USD
Sale Sold out
Shipping calculated at checkout.
View full details

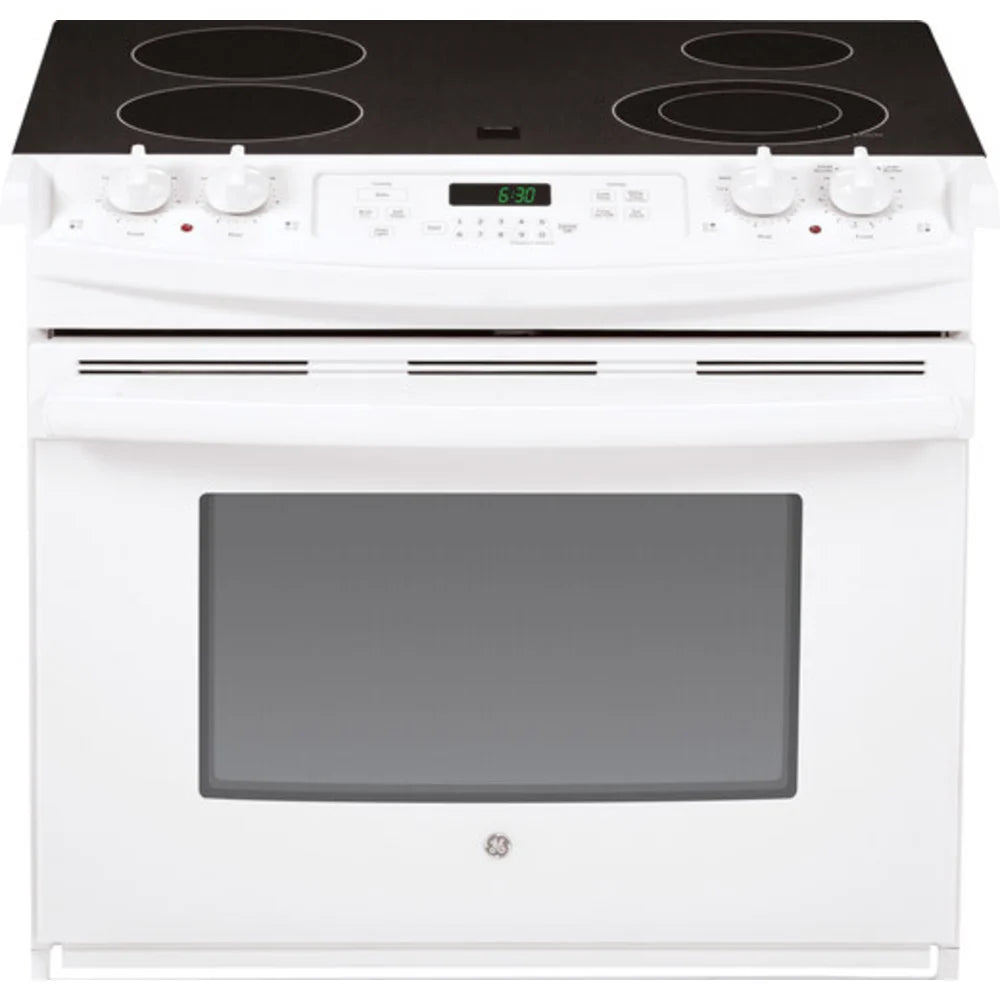

GE Drop-In Electric Range Model JD630DFWW

4 Smoothtop Elements
Provide even heat and easy cleanup.
Self-Clean Oven
Delivers a high concentrated heat with the touch of a button that conveniently cleans the oven cavity and eliminates the need to scrub baked-on food and spills.

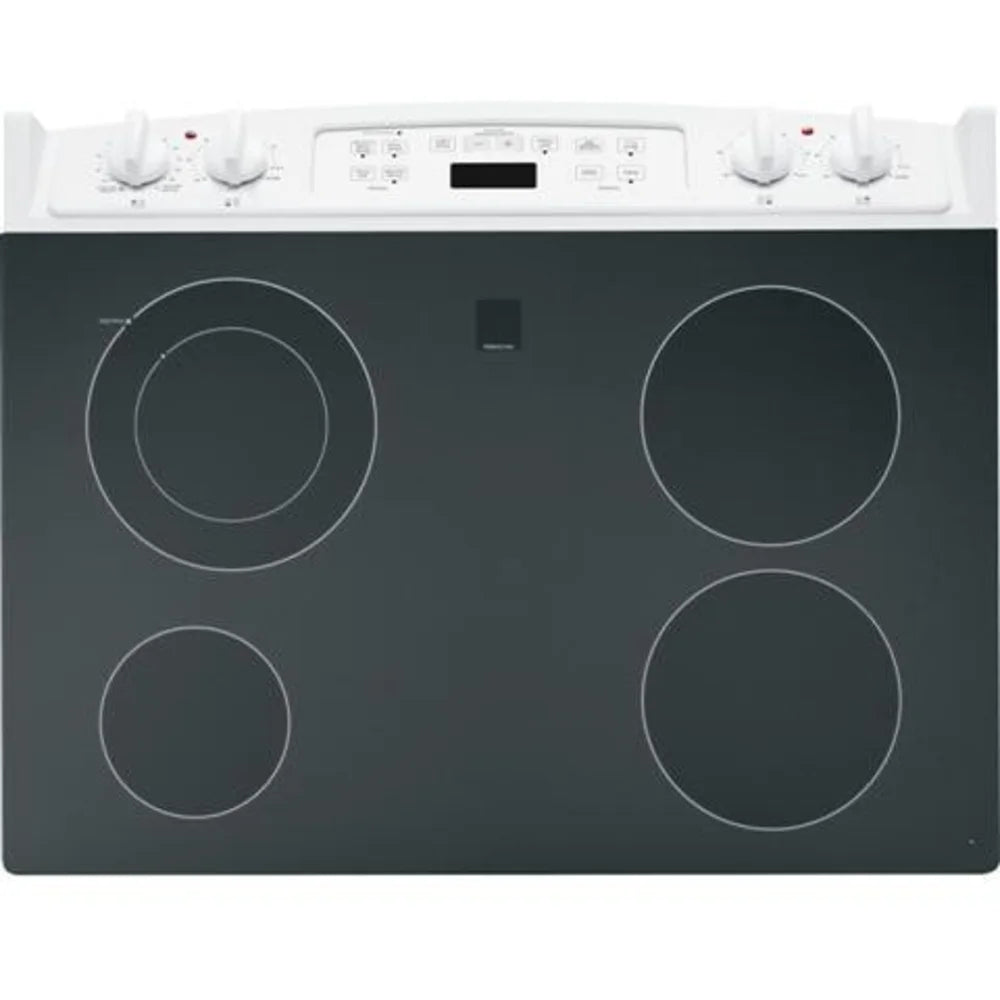

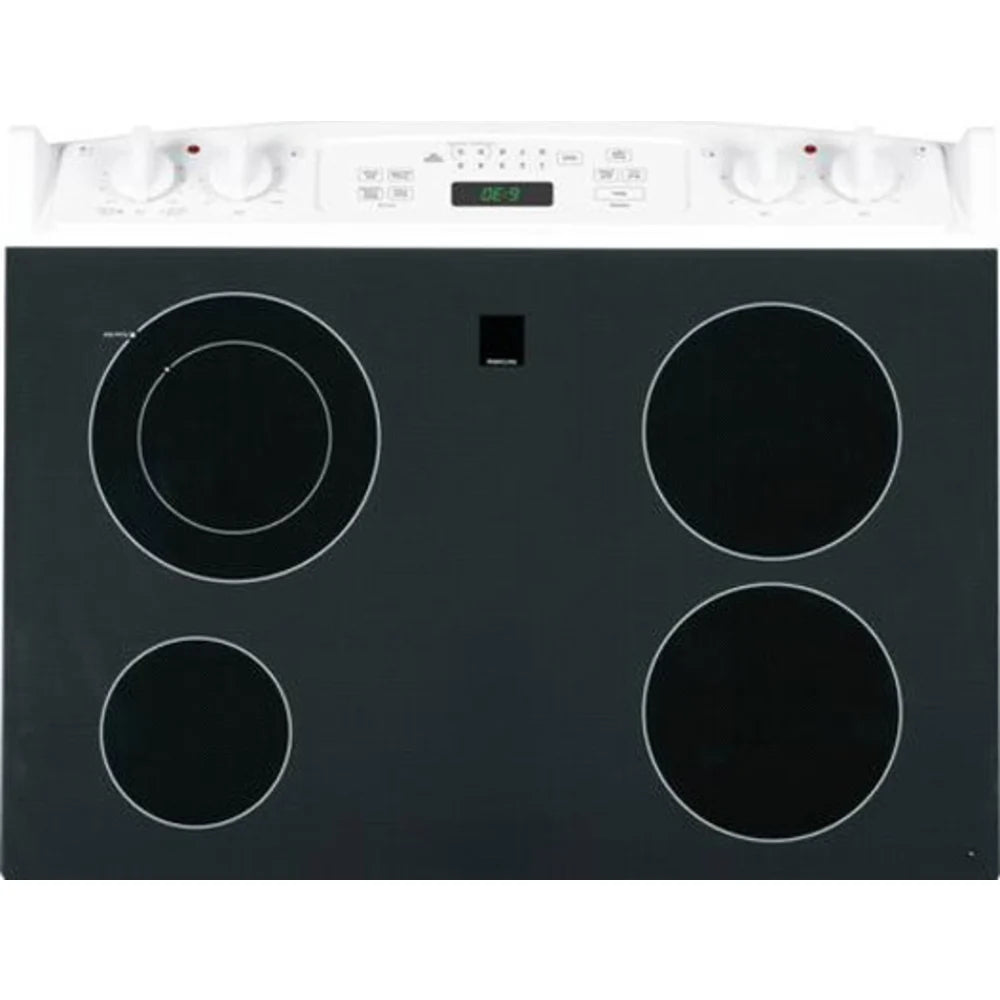

Ceramic Glass Cooktop
Creates a cooking environment that is not only functional but also easy to clean and maintain.

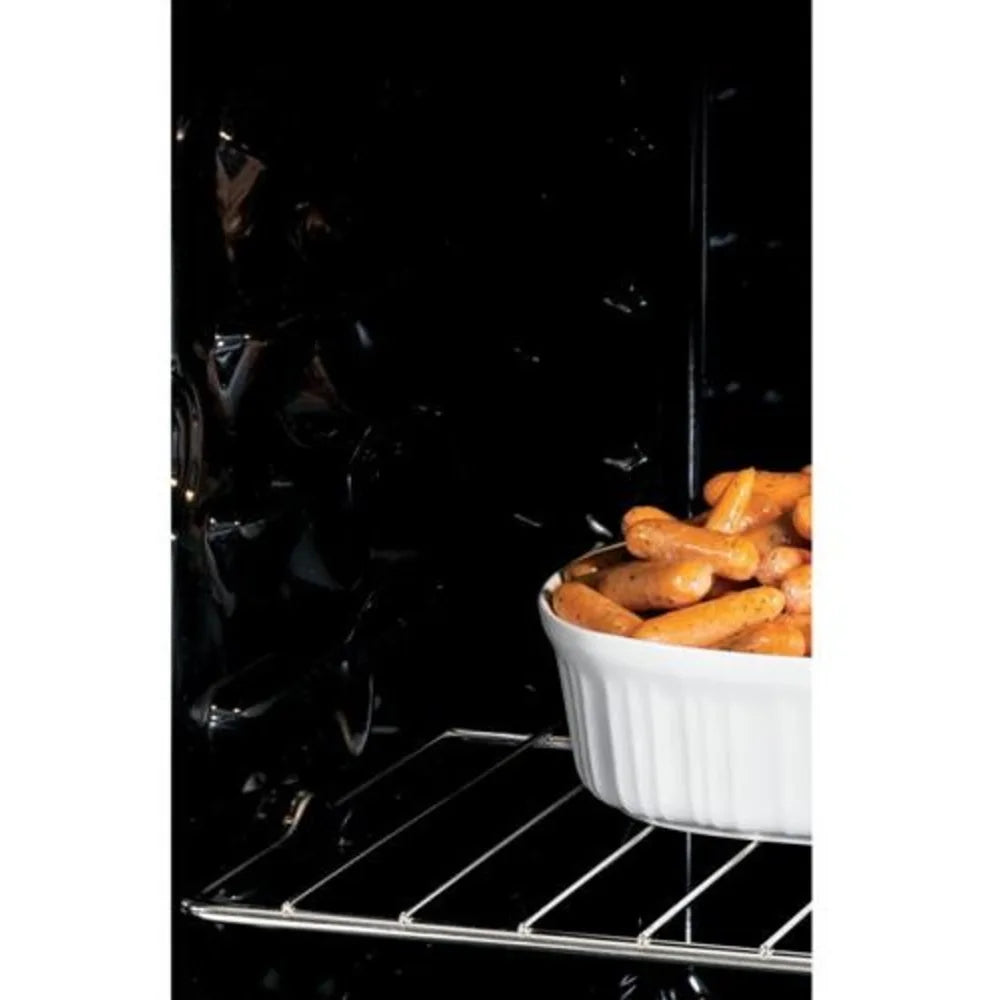

Black Gloss Oven Interior
Enjoy a clean and sleek appearance.

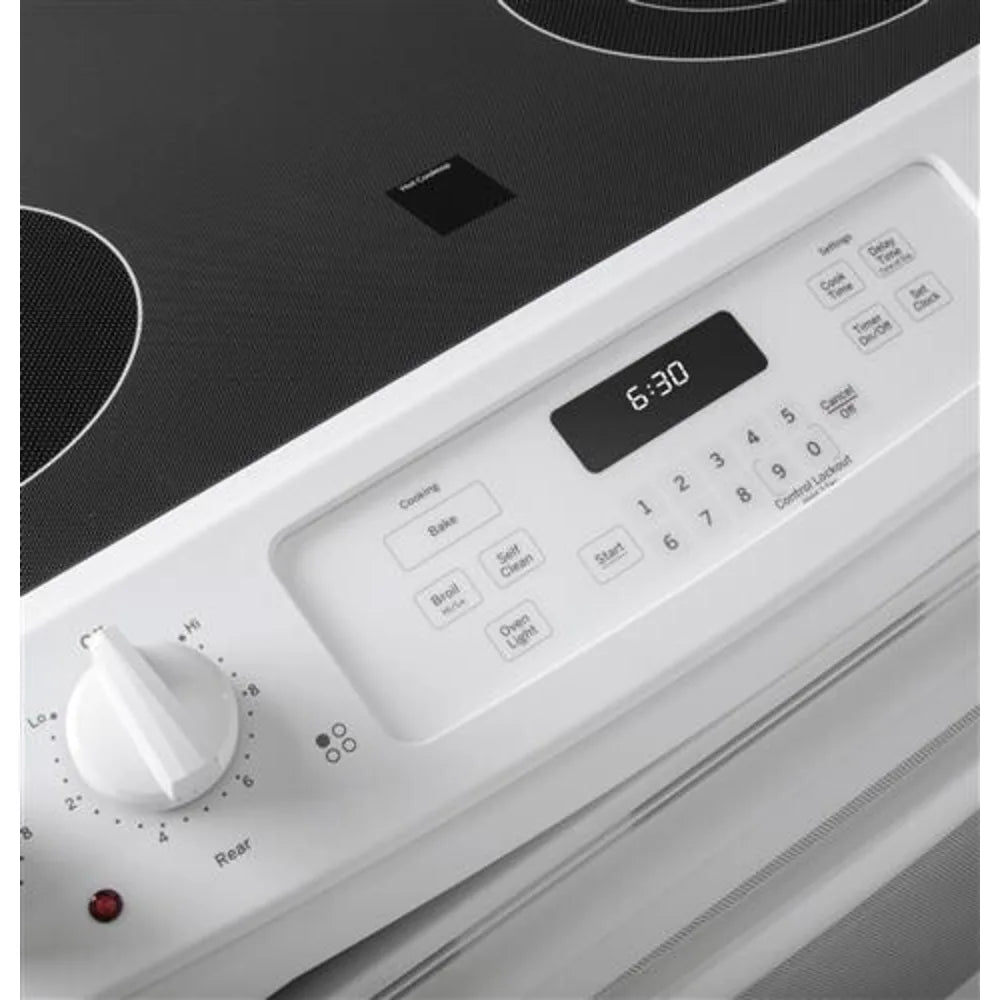

Electronic Oven Controls
The oven control panel features electronic touchpads that require just a touch to initiate the operation.
Dual-Element Bake
Upper and lower elements produce even heat and great results.
9"/6" Power Broil Element
Produces rapid, powerful heat.
Other Features
4.4 cu. ft. Oven Capacity
Claims & Certifications
UL Listed
Total Capacity (cubic feet):   4.4
Installation:   Flush Appearance
Control Knobs:   Weighted. Color-Matched
Oven Door Features:   Big View Oven Window. Glass Door
Color Appearance:   White on White
Handle:   Color-Matched. Designer Style
Amp Rating at 240V:   40
KW Rating at 240V:   11.9
Broiler Wattage:   3420W
Bake Wattage:   3410W
Amp Rating at 208V:   40
KW Rating at 208V:   8.9
Parts Warranty:   Limited 1-year entire appliance
Labor Warranty:   Limited 1-year entire appliance
Cooktop Cleaning:   Included. Cream. Sponge
ADA Compliant:   Yes
MADE IN AMERICA:   70 to 90% U.S. Content
UL:   Yes
California Prop 65:   Yes
Overall Height:   27"
Cooktop Width:   31 1/4"
Oven Interior Dimensions (W x H x D):   24" x 17 1/2" x 18 1/4"
Cabinet Width:   30"
Approximate Shipping Weight:   179 lb.
Depth Without Handle:   25 3/4"
Overall Depth:   28 1/2"
Overall Width:   31 1/4"
Net Weight:   158 lb.
Depth with Door Open:   44 5/8"
Cabinet Opening:   30"
Product Type:   Drop-In
Fuel Type:   Electric
Cooking Technology:   Traditional
Control Location:   Front
Heating Element "ON" Indicator Light:   2
Hot Surface Indicator Lights:   4
Cooktop Surface:   Overhanging Cooktop. Black Ceramic Glass
Cooktop Type:   Radiant Smoothtop
Cooktop Burner Type:   Radiant. Smoothtop
Melt Setting:   Yes
Control Type:   Digital Temperature Display. Electronic. Touchpads
Element - Right Rear:   6" 1200W

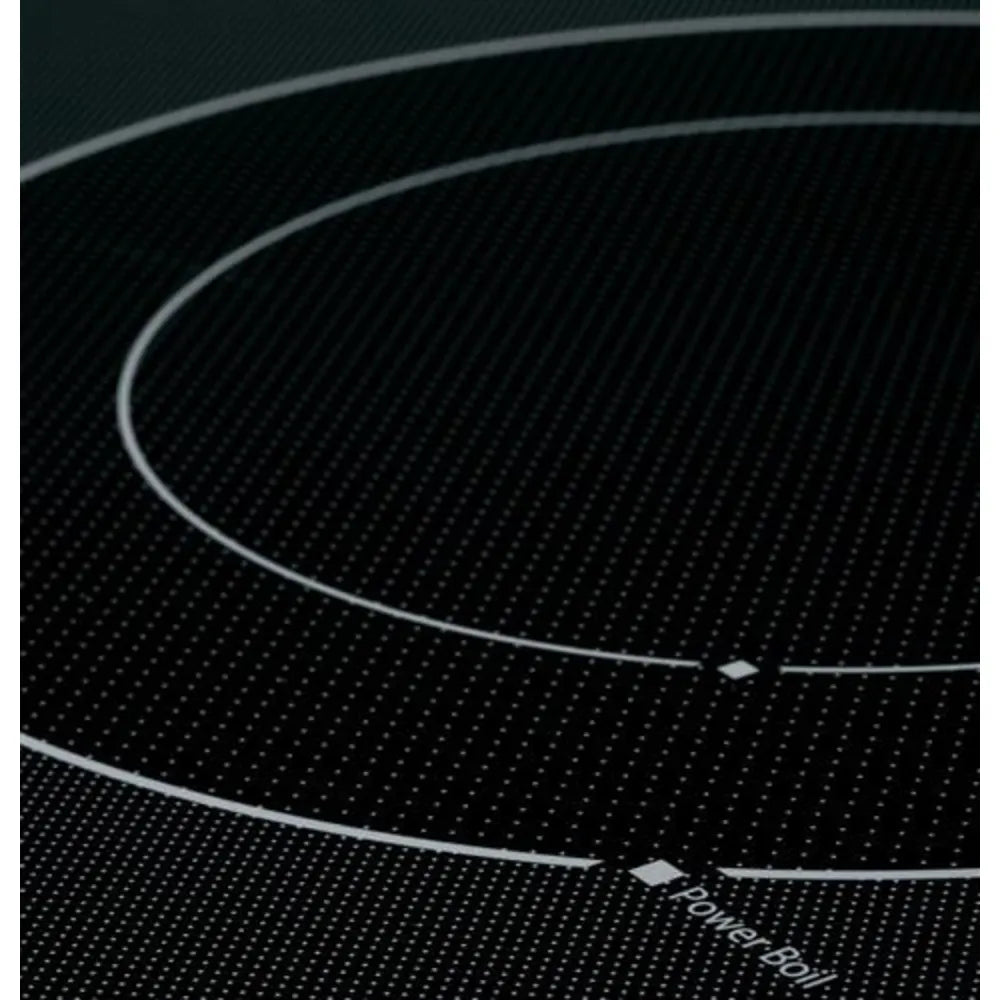

Element - Right Front:   9"/6" 3000W Power Boil
Element - Left Front:   8" 2000W
Element - Left Rear:   8" 2000W
Self-Clean Oven Door Lock:   Automatic
Oven Cleaning Type:   Self-Clean
Interior Oven Light:   1 Incandescent
Oven Features:   6-Pass Bake Element. 6-Pass Broil Element

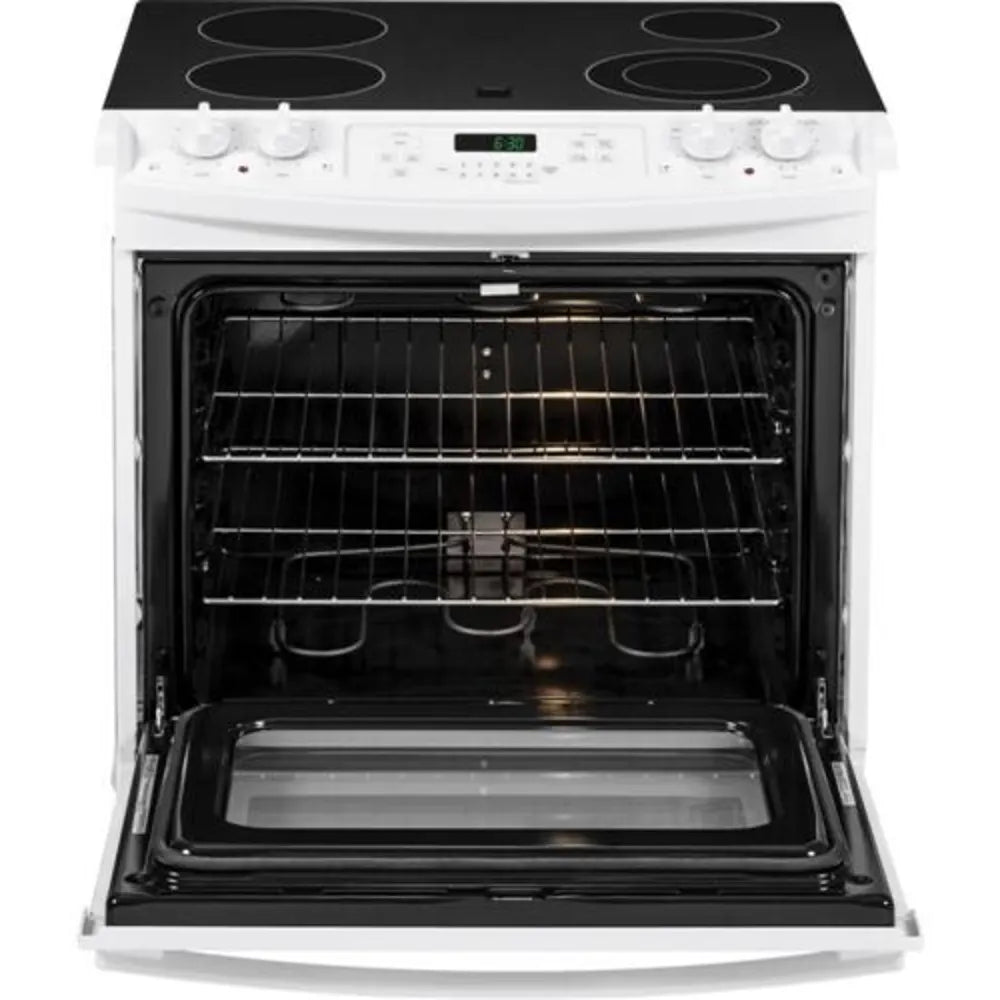

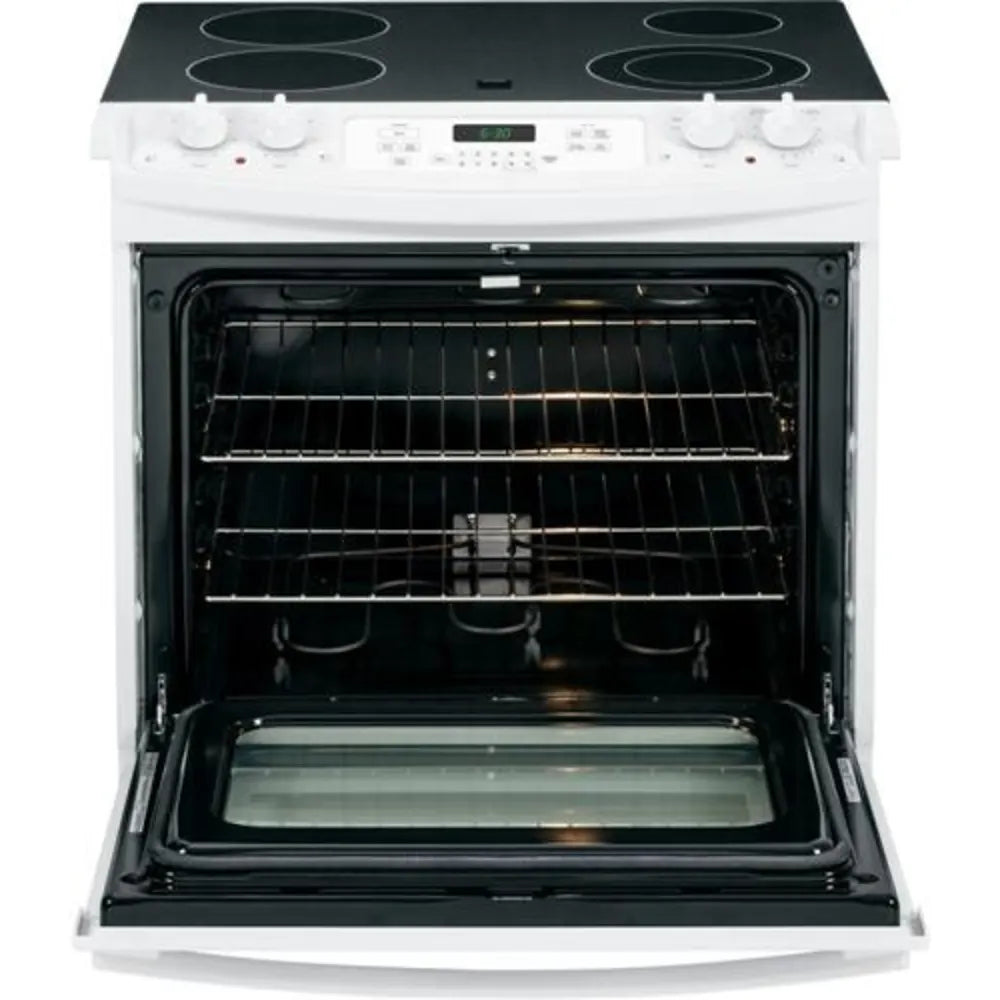

Oven Rack Features:   2 Oven Racks. 7 Rack Positions
Oven Control Features:   Audible Preheat Signal. Auto Oven Shut-Off with Override. C° or F° Programmable. Certified Sabbath Mode. Control Lock Capability. Delay Bake Option With Cook & Hold. Electronic Clock & Kitchen Timer
Brand: GE
Model: JD630DFWW
Fuel Type: Electric
Style: Drop-In
Color: White
Fingerprint Resistant: No
Stainless Steel Handle: No
Cooktop: Smoothtop
Cooktop Control Type: Knobs
Oven Control Type: Touchpad
Viewing Window: Yes
Double Oven: No
Drawer: None
Clock: Yes
Width: 31 1/4 Inch
Depth: 28 1/2 Inch
Height: 27 Inch
Interior Width: 24 Inch
Interior Depth: 18 1/4 Inch
Interior Height: 17 1/2 Inch
Exterior Width: 30 Inch
Sabbath Mode: Yes
WiFi: No
Bluetooth: No
Remote Control: No
Number of Burners: 4
Primary Oven Capacity: 4.4 Cu. Ft.
Burner 1 Output: 1200
Burner 2 Output: 3000
Burner 3 Output: 2000
Burner 4 Output: 2000
Hot Surface Indicator Light: Yes
Induction: No
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: No
Proof Mode: No
Self-Cleaning: Yes
Steam Clean: No
Racks: 2
Temperature Probe: No
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: Yes
ADA Compliant: Yes
Oven Wattage: 3,600
LP Conversion: No
Amps: 40
Voltage: 240/208 Volts
UPC: 084691257448
EAN: 0084691257448


Location: DC-WH
Warehouse Location: S08
