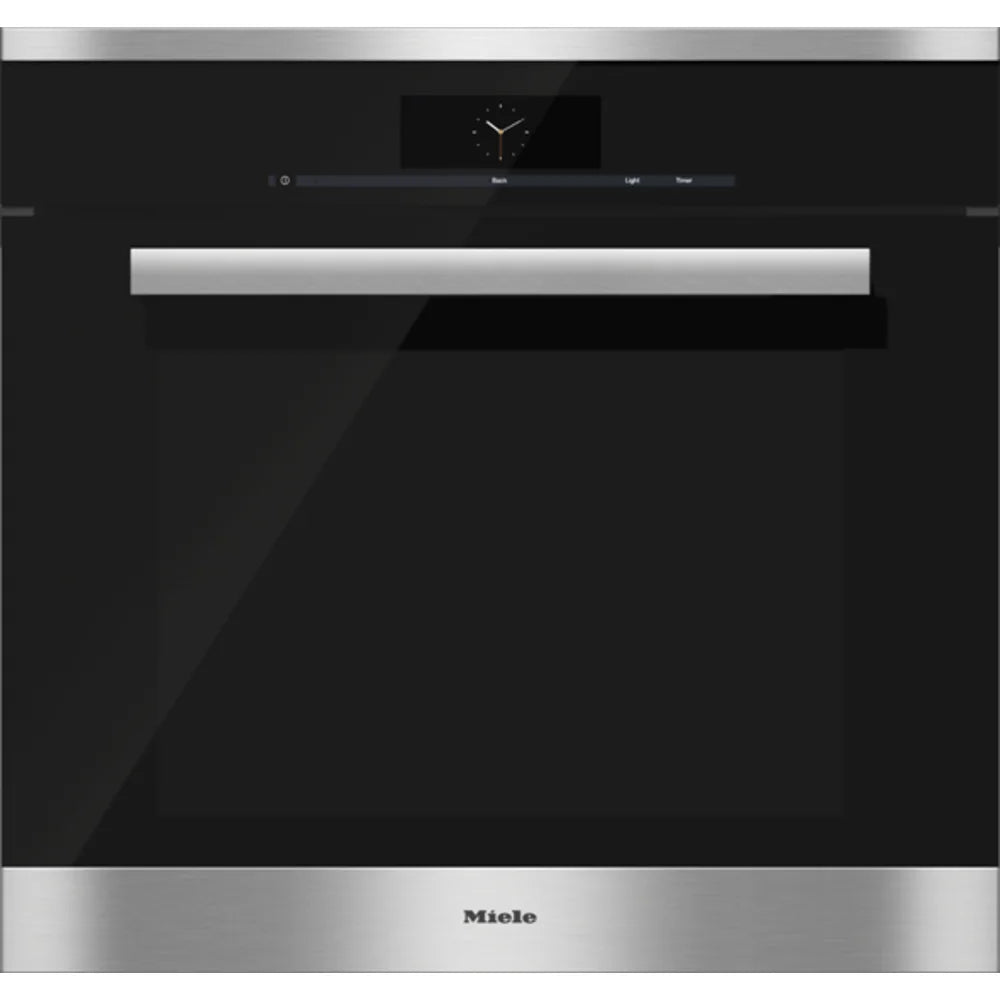

Miele Clean Touch Convection Wall Oven Model H 6880 BP
PureLine Silhouette Handle | |
The simple yet sleek Silhouette handle seems to float enhancing its modern design lines. | |

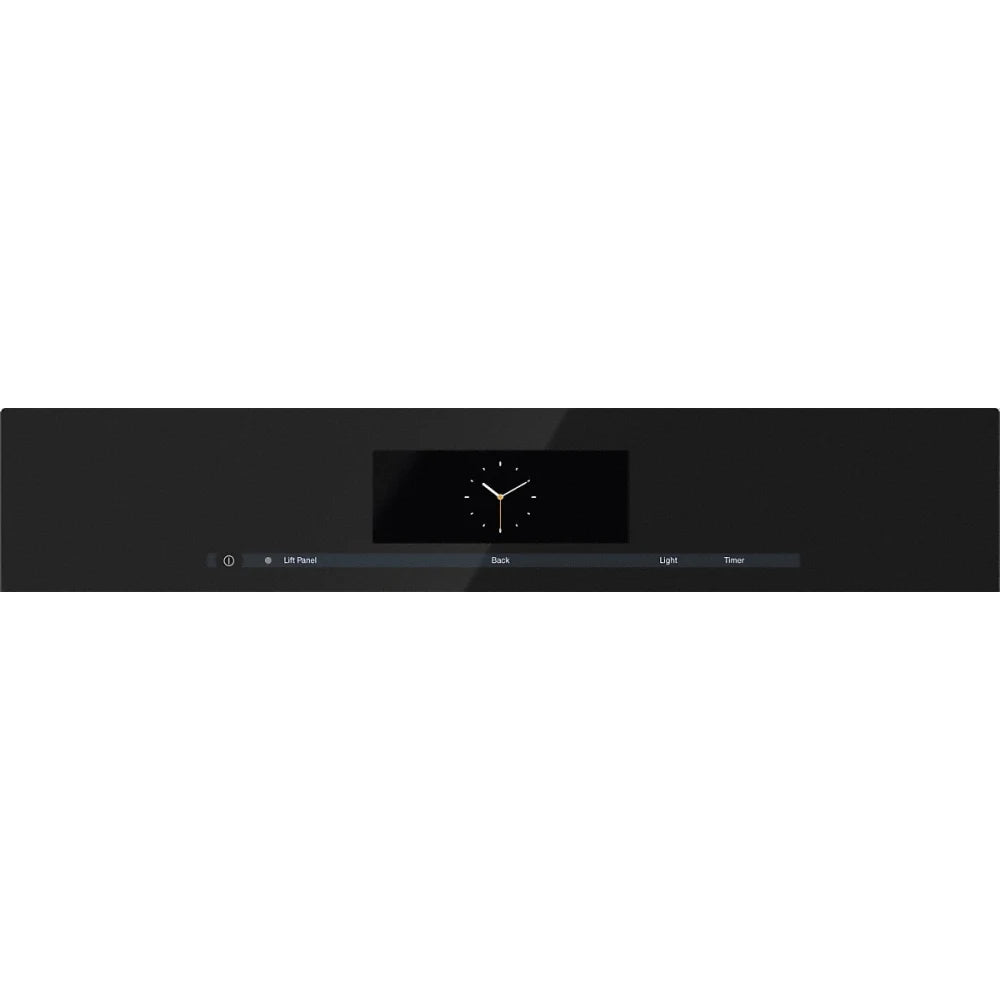

M-Touch Controls | |
M-Touch Controls are both easy to operate and navigate. | |
Pyrolytic Cleaning (Self-Clean) | |
The Pyrolytic function automatically cleans the soiled oven cavity at very high temperatures. | |
CleanGlass Door | |
The flush inner door panel of this convection oven is completely smooth without nooks or crannies and therefore easy to clean. | |
19 Operating Modes | |
Includes Moisture Plus (plumbed only) which increases the humidity in the oven optimizing the cooking of a variety of foods. | |
MasterChef Plus | |
Fully functional automatic programs to create 15 different types of bread at home. | |
MasterChef Menu | |
Offers over 100 food types to cook to perfection. | |
Accessories Included | |
1 Grilling and Roasting insert | |
More Features | |
Sabbath Program | |
Finish: | Clean Touch Steel |
Handle: | ContourLine (H6780BP) or PureLine (H6880BP) |
Comfort Handle: | Optional with ContourLine |
ComfortSwivel Handle: | Standard with ContourLine; Optional for PureLine |
Silhouette Handle: | Standard with PureLine; Optional for ContourLine |
Controls: | M Touch Controls |
Rapid Preheat: | Yes |
Convection Bake: | Yes |
Convection Roast: | Yes |
Sabbath Mode: | Yes |
Self-Cleaning: | Yes |
Temperature Control: | Electronic |
Electrical Requirements: | 208/240V 30A 60Hz circuit |
Power Cord: | Yes - NEMA 14-30 plug |
Electrical Rating: | 120/208V, 30A, 60Hz 5800w / 120/240V, 30A, 60Hz 4400w |
Total Amps: | 240V / 24.166A / 208V / 21.15A |
Overall Unit Width - Excluding Control Panel Dimension: | 28 7/16" |
Overall Unit Depth - Excluding Control Panel Dimension: | 23 3/4" |
Overall Height - Excluding Control Panel Dimension: | 27 3/4" |
Oven Door Clearance: | 23" |
Overall Oven Interior Capacity: | 4.63 cu. ft. |
Overall Control Panel Dimensions: | 29 13/16" W x 28 5/8" H x 23 3/4" D |
Oven Interior Dimensions: | 24 1/2" W x 16 5/8" H x 18 1/4" D |
Shipping Weight: | 216 Lbs. |
Shipping Dimensions: | 32 11/16" W x 35 1/16" H x 30 5/16" L |
Minimum Cabinet Width: | 28 1/2" |
Minimum Cabinet Depth: | min. 24" |
Minimum Cabinet Opening Height: | 28 1/4" |
Minimum Base Support: | 193 Lbs. |
Additional Cut-outs Required: | Venting cut-out required at base of cabinet (4" x 28") in the bottom of the cabinet for power cord and ventilation |
Plumbing Requirements: | An Inline water filter, like activated carbon, is required to reduce mineral deposits. Do not connect to a Reverse Osmosis (RO) water system. Connect to a cold water supply only not to exceed 140°F(60°C). Must be connected to a shut-off valve. The water shut-off valve must be accessible after installation. The water pressure must be between 14.5 and 145 psi (1 and 10 bars). If the pressure is higher, install a pressure-reducing valve. The supplied hose has a length of 4' 11" (1.5 m). The hose must not be shortened. |
Brand: | Miele |
Series: | PureLine M-Touch Series |
Model: | H6880BP |
Fuel Type: | Electric |
Style: | Single |
Microwave: | No |
Speed Oven: | No |
Steam Oven: | No |
Color: | Stainless Steel |
Stainless Steel Handle: | Yes |
Control Type: | Touch Sensor |
Viewing Window: | Yes |
Drawer: | None |
Clock: | Analog |
Cutout Width: | 28 1/2 Inch |
Cutout Depth: | 24 Inch |
Cutout Height: | 28 1/4 Inch |
Exterior Width: | 30 Inch |
Exterior Depth: | 23 3/4 Inch |
Exterior Height: | 28 5/8 Inch |
Sabbath Mode: | Yes |
Capacity: | 4.6 Cu. Ft. |
Oven Racks: | 3 |
Digital Temperature Display: | No |
Timer: | Yes |
Delay Bake: | Yes |
Convection: | Yes |
Proof Mode: | Yes |
Self-Cleaning: | Yes |
Temperature Probe: | Yes |
Broiler Element Location: | Top |
Broiler Pan Included: | Yes |
Interior Oven Light: | Yes |
Removable Door: | Yes |
ADA Compliant: | No |
Undercounter Installable: | Yes |
Approved for Outdoor Use: | No |
Amps: | 30 |
Voltage: | 240/208 Volts |
UPC: | 22688053USA |
EAN: | 4002515426388 |
