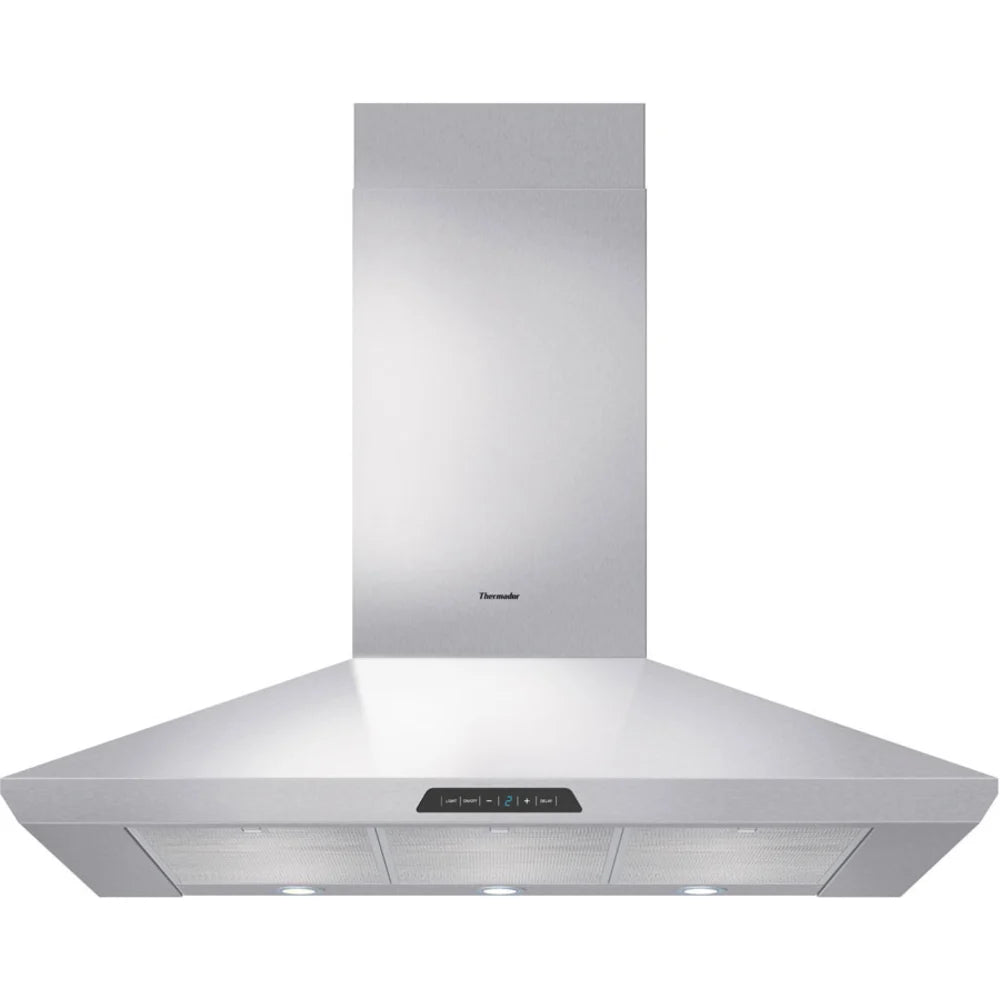

Thermador Chimney Style Wall Mount Hood Model HMCN42FS
| Performance | |
| 3 fan speeds plus 10 minute high-power operation mode | |
| Design | |
| Classic chiseled design matches Thermador's Masterpiece Series family of kitchen appliances | |
| Convenience | |
| Halogen lighting spotlights your best recipes | |
| Installation Options | |
| Thermador Chimney Wall Hoods may be installed above a Thermador non-professional gas, electric or induction cooktop to create a convenient cooking center. | |
| Canopy Width: | 41 1/2" |
| Canopy Depth: | 21 1/2" |
| Canopy Height: | 9 1/2" |
| Overall Height included Chimney: | 31" - 35" |
| Chimney Width: | 13 1/2" |
| Chimney Depth: | 11" |
| Chimney Height: | 21 1/2" |
| Available Hood Widths: | 36", 42" |
| Blower: | Sold Separately - See below for more info. |
| Duct Size at Discharge: | 8" Round |
| Ducting Direction: | Vertical |
| Ceiling Heights: | 8 ft. to 9 ft. |
| Dishwasher Safe Filters: | 3 Mesh with Stainless Frame |
| Halogen Lighting: | 3 Bulbs |
| Transition with Backdraft Damper: | Required (Purchase separately at most hardware stores) |
| Non-Ducted Capability: | No |
| CFM: | 600, 1000, 1300 |
| Type - Remote: | 600/1000/1300 CFM |
| Type - Inline: | 600/1000 CFM |
| Type - Integral: | 1000 CFM |
| Integral: | VTN1080F |
| Remote: | VTR630D; VTR1030D; VTR1330E |
| Inline: | VTI610D; VTI1010D |
| Total Amps @ 120 Volts, 60 Hz - VTN1080F: | 5.0 |
| Total Amps @ 120 Volts, 60 Hz - VTR630D: | 6.7 |
| Total Amps @ 120 Volts, 60 Hz - VTR1030D: | 7.8 |
| Total Amps @ 120 Volts, 60 Hz - VTR1330E: | 9.2 |
| Total Amps @ 120 Volts, 60 Hz - VTI610D: | 5.8 |
| Total Amps @ 120 Volts, 60 Hz - VTI1010D: | 7.6 |
| Roof Plate Required - RFPLT600: | For use with VTR630D |
| Roof Plate Required - RFPLT1000: | For use with VTR1030D & VTR1330E |
| Electrical Supply: | 120V AC, 60 Hz |
| Required Circuit Breaker: | 15 or 20 Amp |
| Limited Parts and Labor: | 1 Year |
| Chimney Extension: | CHIMXHMC |
| Roof Plate: | RFPLT600 (for use with VTR630D) |
| Roof Plate: | RFPLT1000 (for use with VTR130D & VTR1330E) |
| Brand: | Thermador |
| Series: | Masterpiece Series |
| Model: | HMCN42FS |
| Style: | Chimney Style |
| Type: | Hood |
| Color: | Stainless Steel |
| Mounting Type: | Wall Mount |
| Venting Type: | Ducted |
| Blower Type: | Both |
| Width: | 41 1/2 Inch |
| Depth: | 21 1/2 Inch |
| Height: | 31 Inch |
| CFM: | 1,300 CFM |
| Number of Fan Speeds: | 4 |
| Dishwasher Safe Filters: | Yes |
| Lighting Levels: | 1 |
| Energy Star Rated: | No |
| Amps: | 20 |
| Voltage: | 120 Volts |
| Approved for Outdoor Use: | No |
| UPC: | 825225861638 |
