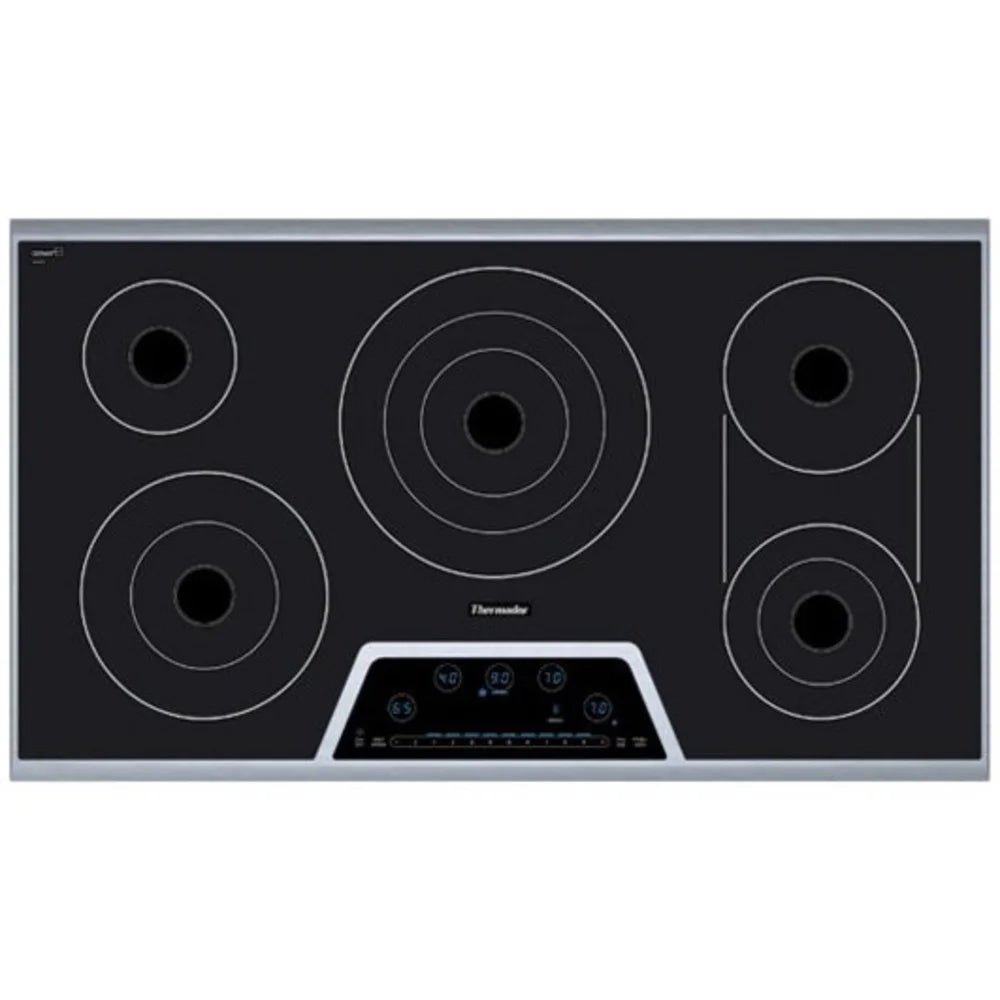

Thermador Masterpiece Electric Cooktop Model CET366FS
Performance | |
Dual zone bridge element accommodates oblong pans and multiple diameter sizes | |
Design | |
Touch control panel with blue light illumination offers 17 power settings | |
Convenience | |
Keep Warm function allows meals to remain ready to serve | |
Safety | |
2-level digital control panel indicates when elements are still hot | |
Installation Above a Wall Oven or Warming Drawer | |
Thermador Masterpiece Electric Cooktops may be installed above a Thermador Single Built-in Oven as long as there is no contact between the bottom of the cooktop and the top of the oven. | |
Important | |
We strongly recommend the installation of a Thermador Ventilation System with all Masterpiece Electric Cooktops. | |
Warning | |
To reduce the risk of ignition of nearby combustible materials, install the countertop with a minimum distance of 2" from both side walls and the back wall. | |
Product Width: | 37" |
Product Depth: | 21 1/4" |
Cutout Width: | 34 3/4" - 34 7/8" |
Cutout Depth: | 19 7/8" - 20" |
Cutout Height: | 3 15/16" |
Minimum Air Clearance: | 1/4" |
Minimum Distance from Counter Front: | 2 1/4" |
Minimum Distance from Rear Wall: | 2 3/4" |
Approximate Shipping Weight: | 42 lbs. |
Total Number of Cooktop Elements: | 6 |
Left Front Element: | 6"/9" @ 1,100/2,500W |
Right Front Element: | 5"/7" @ 700/1,700W |
Left Rear Element: | 6" @ 1,200W |
Right Rear Element: | 7" @ 1,700W (600 W Bridge) |
Center Element: | 6"/8"/12" @ 1,000/2,200/3,000 W |
Electrical Supply: | 240/208V AC, 60 Hz |
Required Circuit Breaker: | 50 Amp/40 Amp |
Conduit: | 38" Flexible 3-Wire |
6" Sensor Pot, 1.4 qt.: | N/A |
6" Sensor Pot, 2.0 qt.: | N/A |
7" Sensor Pot, 3.8 qt.: | N/A |
9" Sensor Pot, 7.0 qt.: | N/A |
16" Skillet for 13" Element: | N/A |
Sensor Strips: | N/A |
Brand: | Thermador |
Series: | Masterpiece Deluxe Series |
Model: | CET366FS |
Fuel Type: | Electric |
Number of Burners: | 6 |
Style: | Smoothtop |
Type: | Drop-In |
Control Type: | Touch Sensor |
Color: | Stainless Steel |
Surface Color: | Black |
Trim Color: | Stainless Steel |
Downdraft Venting: | No |
Actual Width: | 37 Inch |
Actual Depth: | 21 1/4 Inch |
Actual Height: | 3 15/16 Inch |
Cutout Width: | 34 3/4 Inch |
Cutout Depth: | 19 7/8 Inch |
Sabbath Mode: | No |
Burner 1 Output: | 3000 |
Burner 2 Output: | 2500 |
Burner 3 Output: | 1700 |
Burner 4 Output: | 1200 |
Burner 5 Output: | 600 |
Grill: | No |
Griddle: | No |
Hot Surface Indicator Light: | Yes |
Induction: | No |
ADA Compliant: | No |
Amps: | 50 |
Voltage: | 240/208 Volts |
UPC: | 825225857952 |
