M&M Appliance

Zephyr Chimney Style Wall Mount Hood Model ZSA-E30DBS Inv# 22243

Zephyr Chimney Style Wall Mount Hood Model ZSA-E30DBS Inv# 22243

Regular price $980.70 USD
Regular price $1,153.77 USD Sale price $980.70 USD
Sale Sold out
Shipping calculated at checkout.
View full details

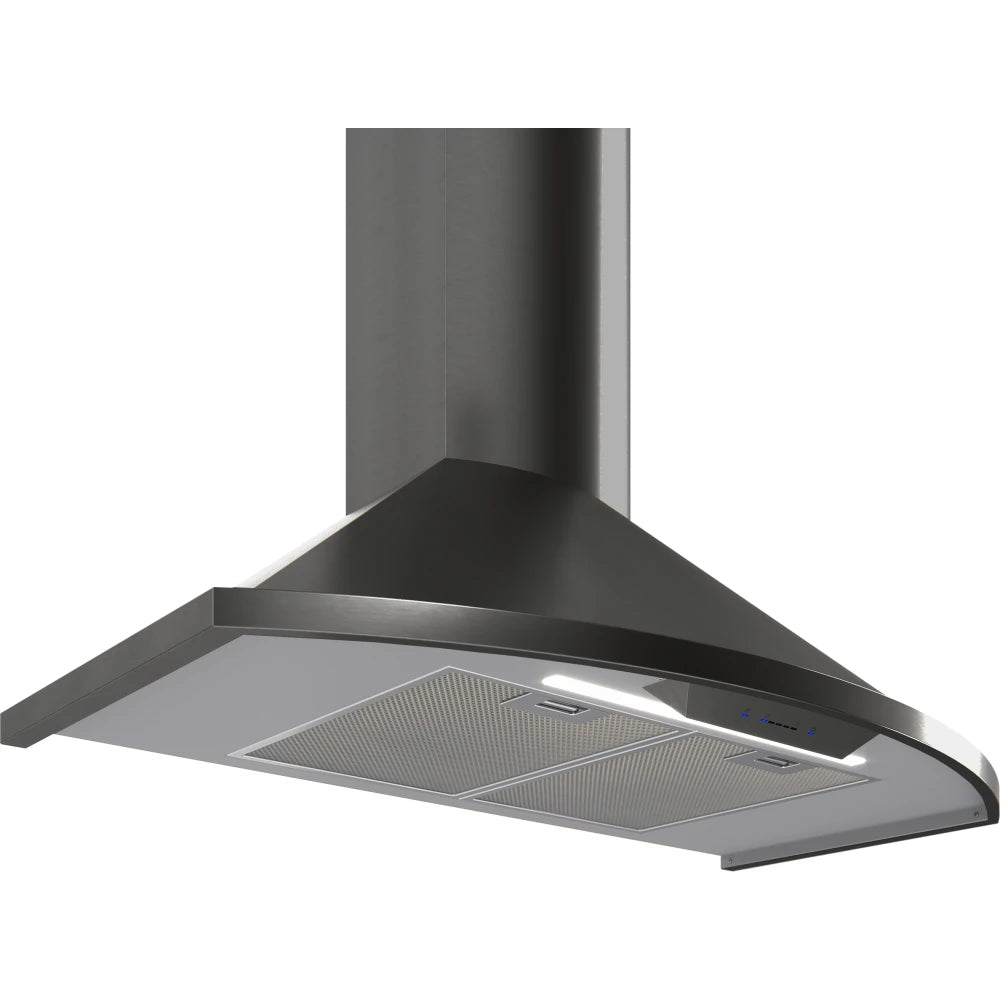

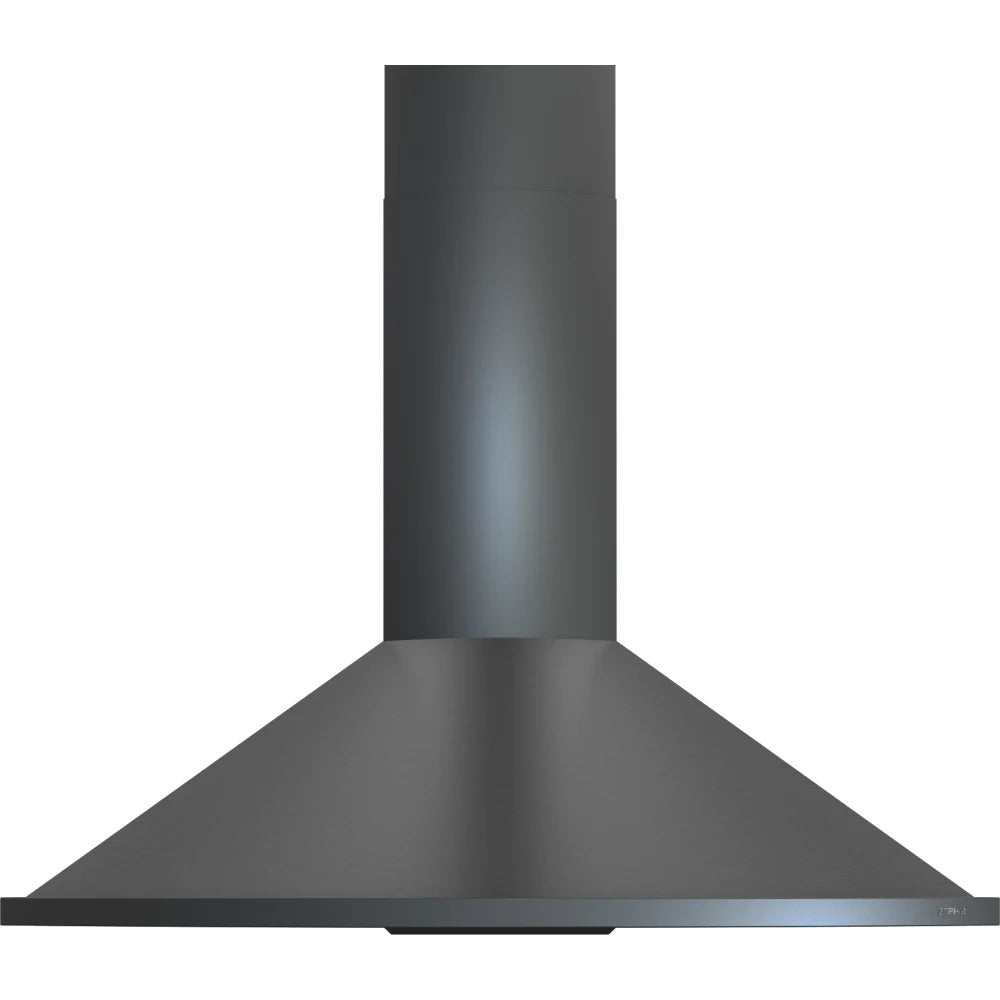

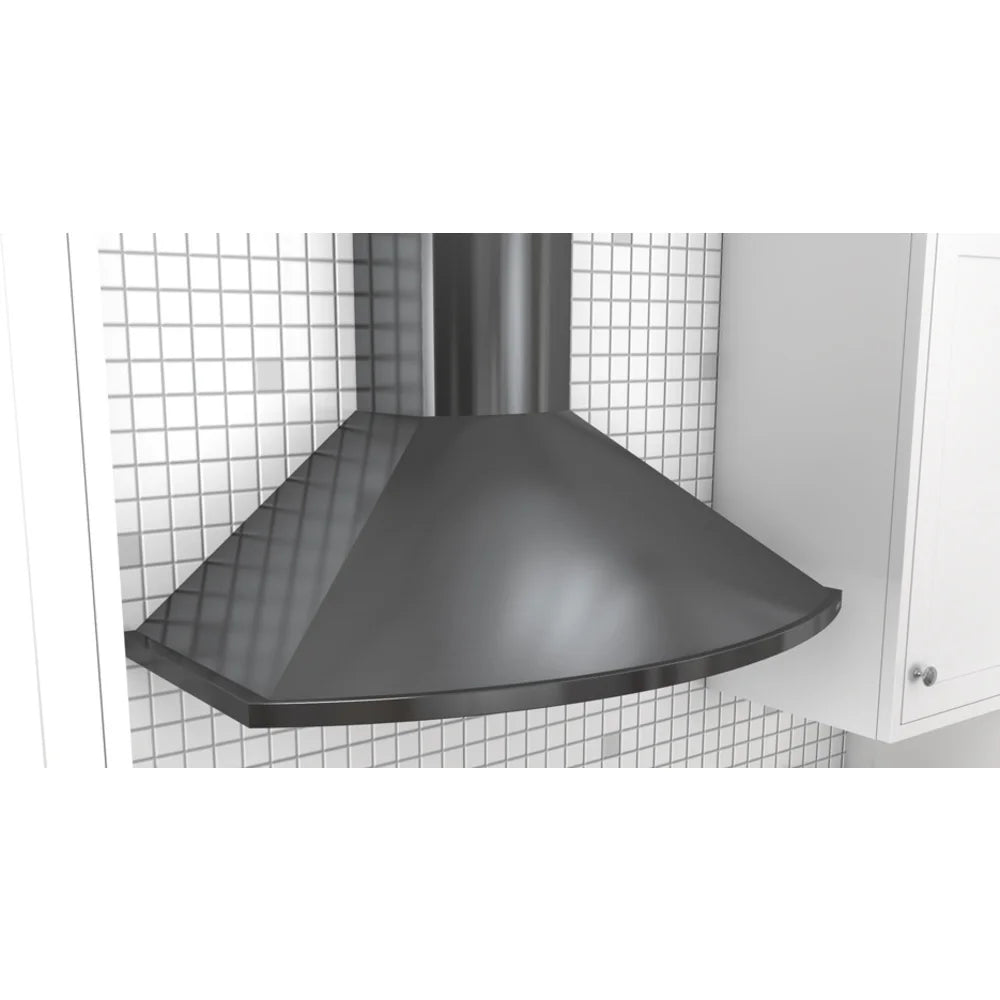

Zephyr Chimney Style Wall Mount Hood Model ZSA-E30DBS

Recirculating Option
Works to bring filtered air back into the kitchen
Icon Touch Controls
Seamlessly integrate into the hood and allow users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Titanium Coating
Titanium coated for extra durability and an anti-smudge coating for easier cleanup
685 CFM
Internal blower of 200-685 CFM for greater ventilation
Airflow Control Technology (ACT)
An exclusive feature built into specific Zephyr hoods which can
Additional Features
5 Fan Speeds
Parts 3 Years Limited
Internal Blower CFM (Min. - Max.):   200-685 CFM
Internal Blower Sones (Min. - Max.):   1-6 Sones
ACT 390 CFM (Min. - Max.):   200-390 CFM
ACT 390 Sones (Min. - Max.):   1-4 Sones
ACT 290 CFM (Min. - Max.):   200 - 290 CFM
Controls:   ICON Touch
Speed Levels:   5
Auto Delay-Off:   Yes
Lighting:   Brite Strip LED
Dual-Level Lighting:   Yes
Filters:   2 (Aluminum Mesh)
Recirculating Option:   Yes
Extension Duct Cover Option:   Yes (Up to 12' Ceiling)
Vertical Internal Blower:   6" Round
Voltage:   120V
Amps:   5A
Frequency:   60 Hz
Parts:   3 Years
Labor:   1 Year
Width:   30"
Depth:   19 1/2"
Standard Min. Ducted Height:   28"
Standard Min. Recirculating Height:   32"
Standard Max. Height:   45"
Mounting Height:   26"-34"
Weight:   40 lbs
Brand: Zephyr
Series: Core Collection Europa Savona Series
Model: ZSAE30DBS
Style: Chimney Style
Type: Hood
Color: Black Stainless Steel
Mounting Type: Wall Mount
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 30 Inch
Depth: 19 1/2 Inch
Height: 29 Inch
CFM: 685 CFM
Permanent Air Flow Reduction: Yes
Sones: 6
Duct Size: 6 Inch
Number of Fan Speeds: 5
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: Yes
Energy Star Rated: No
CEE Rating: Not Available
Amps: 5
Voltage: 120 Volts
Approved for Outdoor Use: No
UPC: 646328005343


Location: DC-WH
Warehouse Location: R01F
