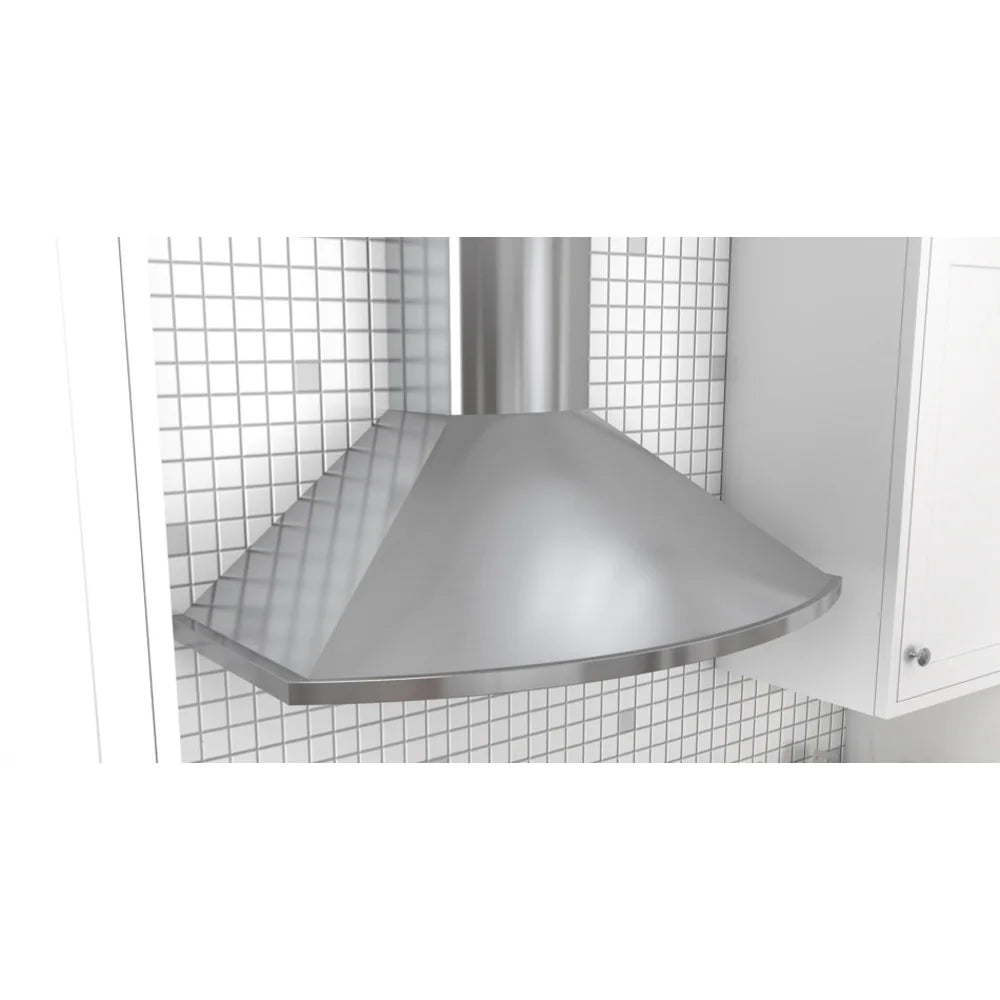

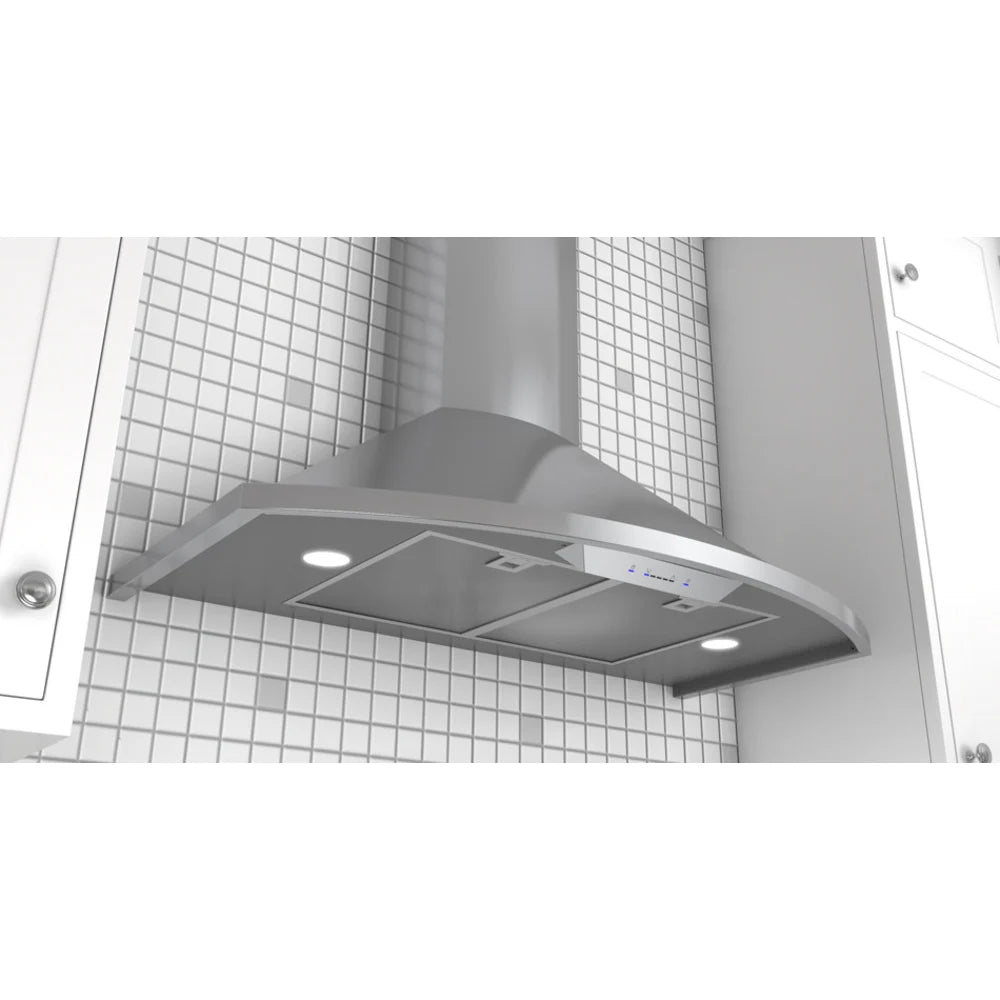

Zephyr Chimney Style Wall Mount Hood Model ZSA-M90CS
| Overall Width: | 35 7/16" |
| Overall Depth: | 19 1/2" |
| Overall Height - Ducted: | 28" min. - 45" max. |
| Overall Height - Recirculated: | 32" min. - 45" max. |
| Flue Width: | 9" |
| Flue Depth: | 7 1/2" |
| Mounting Height: | 26" - 34" |
| Internal Blower CFM: | 200 (min.) - 685 (max.) |
| Internal Sones: | 1 (min.) - 6 (max.) |
| ACT: | Yes |
| Controls: | ICON Touch |
| Speed Levels: | 5 |
| Auto Delay-Off: | Yes |
| Lighting: | Halogen, 50W x 2 |
| Dual Level Lighting: | Yes |
| Filters: | Aluminum Mesh x 2 |
| Recirculating Option: | Yes |
| Duct Cover Extension Option: | Yes |
| Color: | Stainless Steel(S) |
| Vertical - Internal: | 6" |
| Horizontal - Internal: | N/A |
| AC Power: | 120V, 60Hz at Max. 3.5A |
| Recirculating Kit: | ZRC00SV |
| Duct Cover Extension: | Z1C01SA(S)Z1C01SAB(B),Z1C01SAW(W) |
| Universal Make-Up Air Kit: | MUA008A |
| Warranty: | 3 Year Parts, 1 Year Labor |
| Brand: | Zephyr |
| Series: | Essentials Europa Europa Savona Series |
| Model: | ZSAM90CS |
| MPN: | ZSA-M90CS |
| Style: | Chimney Style |
| Type: | Hood |
| Color: | Stainless Steel |
| Mounting Type: | Wall Mount |
| Venting Type: | Convertible |
| Blower Type: | Internal |
| Width: | 35 7/16 Inch |
| Depth: | 19 1/2 Inch |
| Height: | 28 Inch |
| CFM: | 685 CFM |
| Sones: | 6 |
| Number of Fan Speeds: | 5 |
| Dishwasher Safe Filters: | No |
| Lighting Levels: | 2 |
| Energy Star Rated: | No |
| Amps: | 15 |
| Voltage: | 120 Volts |
| Approved for Outdoor Use: | No |
| UPC: | 646328003264 |
