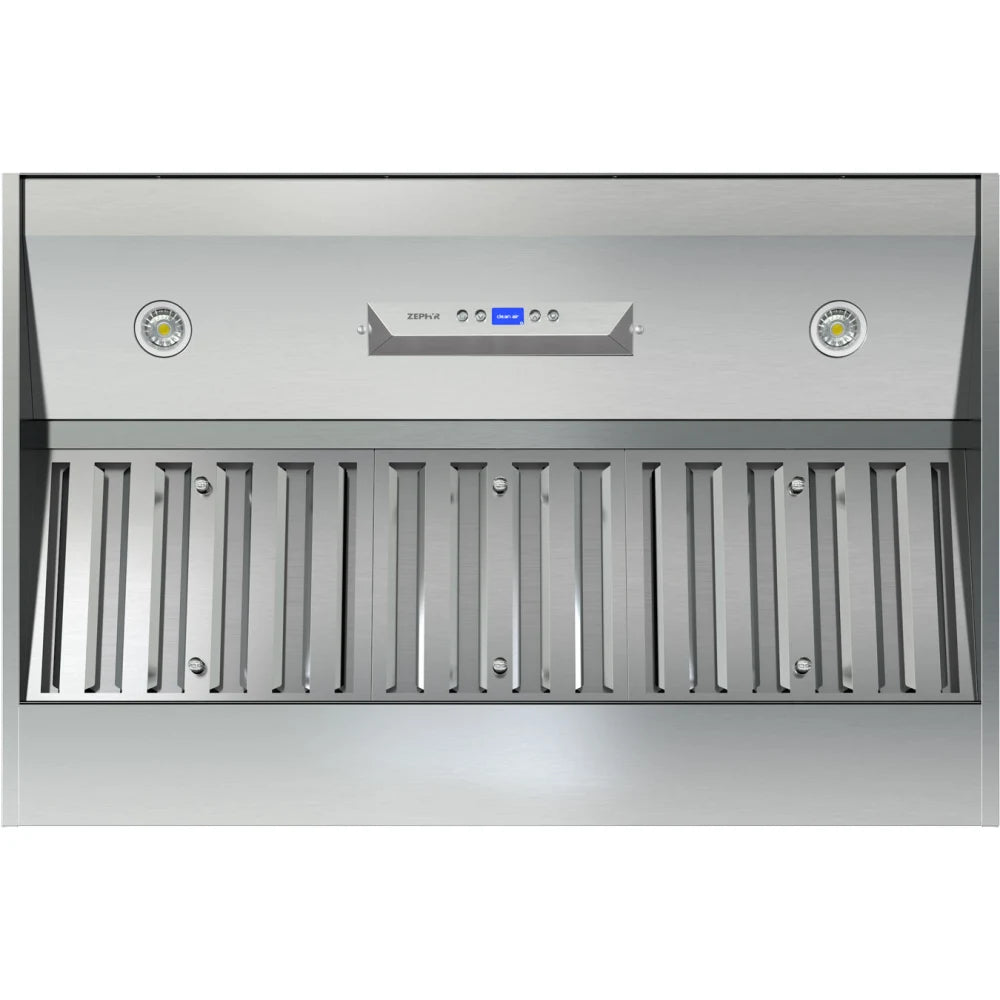

Zephyr Hood Model AK9434AS
| DCBL Suppression System | |
| Makes Monsoon DCBL the most quiet and energy efficient insert liner available today | |
| Ultra-quiet 715 CFM motor at 5.8 Sones on Max | |
| Stainless Steel Baffle Filters with a Removable Grease Tray for Easy Cleaning | |
| Vertical and Horizontal Ducting | |

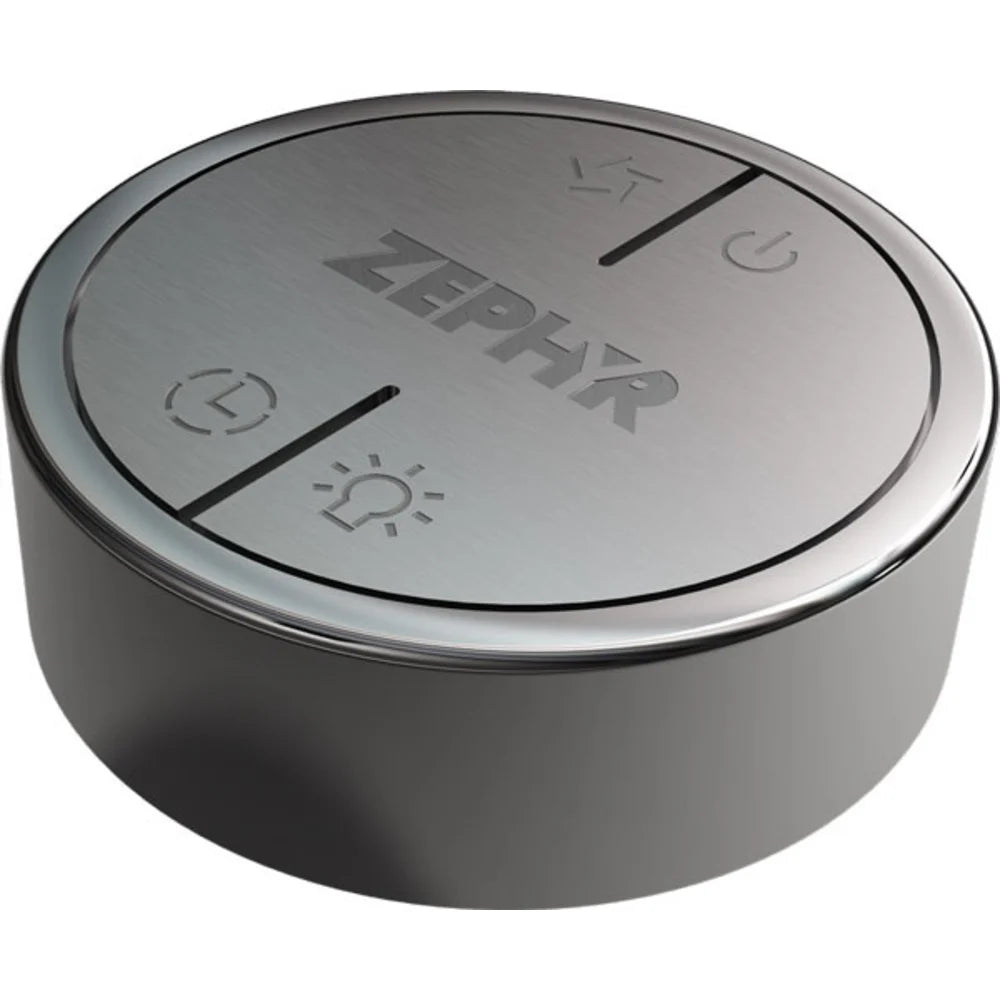

| ADA Compliant Wireless Remote Control | |
| Monsoon DCBL Fits the Most Commonly Specified Installation Dimensions | |
| 36" Mounting Height Maximum | |
| Zephyr Warranty: 3-year Parts, 1-year Labor |
| Internal Min-Max Blower CFM: | 250 - 715 |
| Internal Min-Max Sones: | 0.8 - 5.8 |
| Controls: | Electronic LCD |
| Speed Levels: | 5 + Burst |
| Auto Delay-Off: | Yes |
| Clean Air Mode: | Yes |
| Lighting: | Bloom LED, 6 W (2) |
| Dual Level Lighting: | Yes |
| Filters: | SS Pro-Baffle |
| RF Remote Control: | Yes |
| Recirculating Option: | No |
| Color: | Stainless Steel |
| AC Input: | 120 V |
| AC Power: | Max 219 W at 3.5 A |
| Mounting Height: | 26 - 36" |
| Size: | 36" |
| Internal Blower - Vertical: | 8" Round |
| Internal Blower - Horizontal: | 3 1/4" x 10" Rectangular, 8" Round |
| Parts: | 3 Years |
| Labor: | 1 Year |
| Width: | 34 3/8" |
| Depth: | 22 1/2" |
| Height: | 12" |
| Brand: | Zephyr |
| Series: | Power Monsoon DCBL Series |
| Model: | AK9434AS |
| MPN: | AK9434AS |
| Type: | Cabinet Insert |
| Color: | Stainless Steel |
| Venting Type: | Ducted |
| Blower Type: | Internal |
| Width: | 34 3/8 Inch |
| Depth: | 22 1/2 Inch |
| Height: | 12 Inch |
| CFM: | 715 CFM |
| Sones: | 5.8 |
| Number of Fan Speeds: | 5 |
| Dishwasher Safe Filters: | Yes |
| Lighting Levels: | 2 |
| Energy Star Rated: | No |
| Amps: | 15 |
| Voltage: | 120 Volts |
| Approved for Outdoor Use: | No |
| UPC: | 646328002649 |
| EAN: | 0646328002649 |
